Serial Number: CH26-02
Model: QLD6.0/8III
Material of Body: Aluminum Alloy
Connection Size: 1.5”, 2”, 2.5”
Flow Rate: 115-230-360-475LPM(30-60-95-125GPM);
Water Spray Angle: 120°;
Working Pressure: 7bar;
Max Working Pressure: 16bar
Max Flow Range: 32M
Coupling standard: Storz,NH,NPT,INST,GOST,Machino,etc.

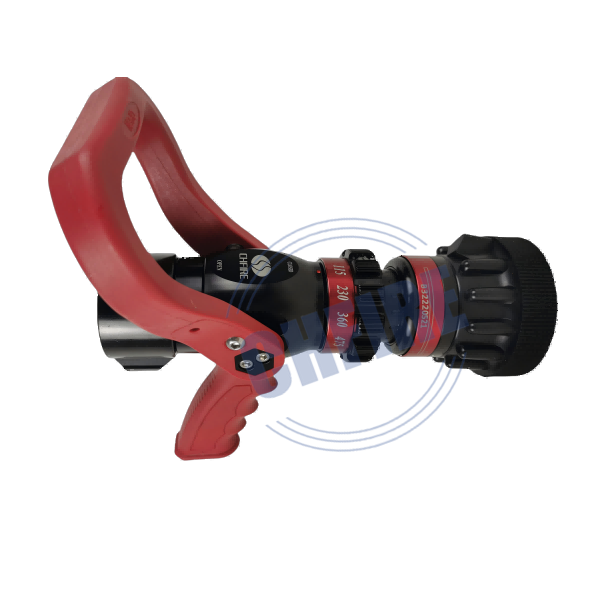

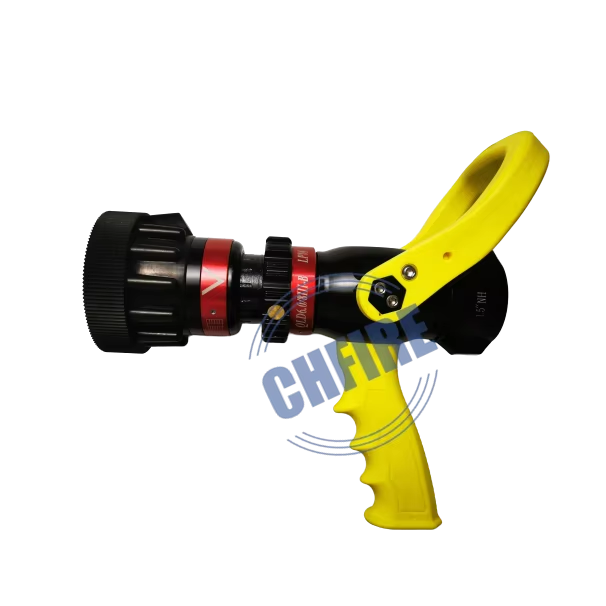

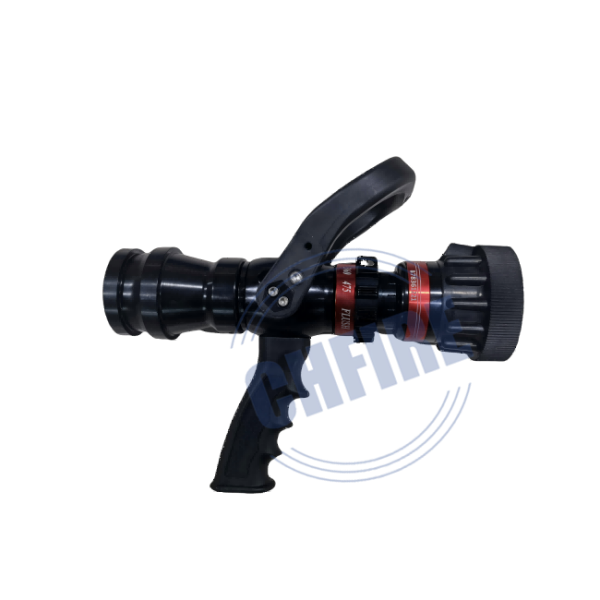

CHFIRE FIREFIGHTING PISTOL GRIP NOZZLE FIRE HOSE NOZZLE FROM CHIAN MANUFACTURER
Recoilless water guns are also called recoilless water guns. They are mainly divided into adjustable flow type water guns, automatic adjustable flow type water guns, constant flow type water guns, and constant pressure type water guns. According to the 1964 standard of the National Fire Protection Association NFPA, recoilless water guns are mainly composed of three parts: spray gun head, ball valve switch and barrel. The purpose of this design is to reduce the recoil of water guns, especially high-pressure water guns, which have a recoil of dozens of kilograms and can easily injure firefighters.
| Model | QLD6.0/8III |
| Serial Number | CH26-02 |
| Material of Body | Hard Anodized Aluminum Alloy |
| Material of Ball Valve | ABS(standard), Aluminum Alloy/stainless steel (optional) |
| Material of Valve Handle | ABS(standard), Aluminum Alloy(optional) |
| Material of Pistol Grip | ABS |
| Material of Bumper | Rubber |
| Working Pressure | 7bar |
| Max Working Pressure | 16bar |
| Jetting Range | 32meters @ 7 bar |
| Max Fog Angle | 120° |
| Flow Range | 115-230-360-475LPM - Flush (30-60-95-125GPM) |
| Inlet | 1.5", 2", 2.5" available for Storz,NH,INST,Machino |
