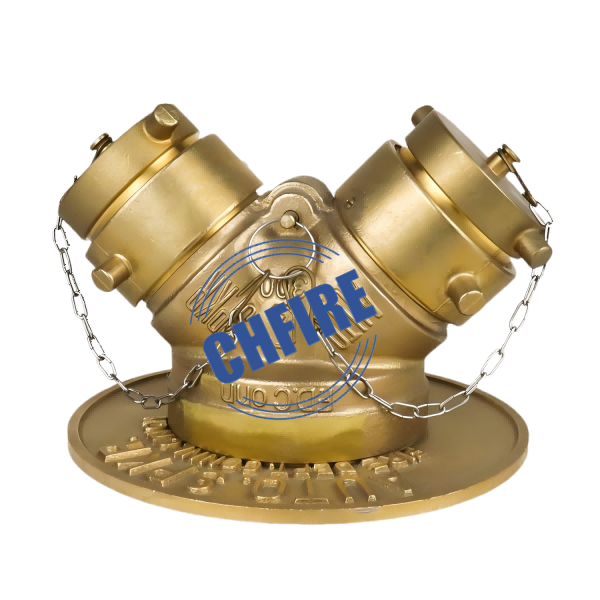

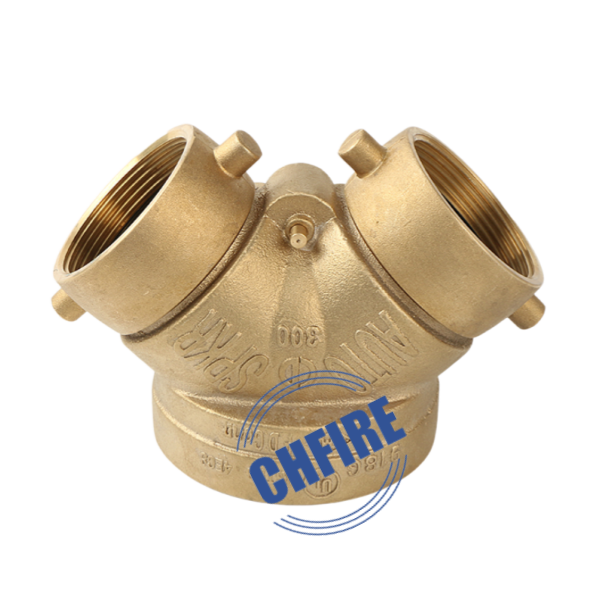

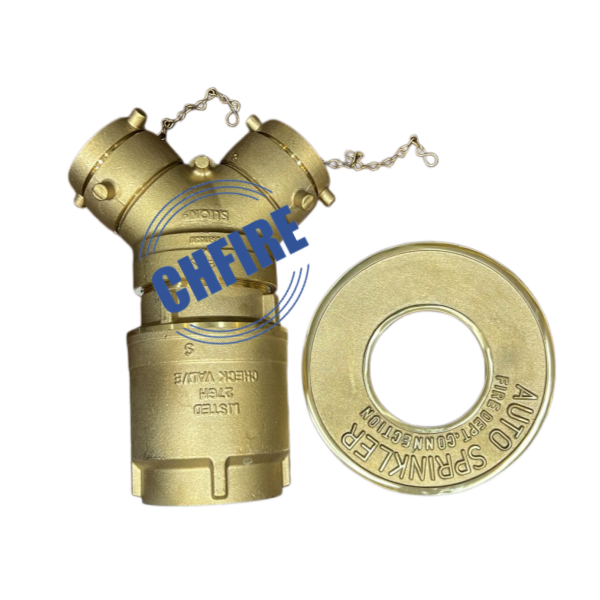

Item Number: CH20-07 4" FDC Y Siamese Connection
Type: 2 Way Siamese Divider
Material: Brass
Inlet: 4" (DN100) NPT
Outlet: 2x2.5" (DN65)NST
Working pressure:16bar
Color: Red
Standard: CE certificate.
CHFIRE fire department connection is one of the most important and convenient allies for firefighters on site.It connects servicing hoses that fire pump water from fire engines.
| Fire Fighting Siamese Department Connection | |
|---|---|
| Material | Brass |
| Inlet Size | 4"(DN100) |
| Outlet Size | 2x2.5"(DN65) |
| Working Pressure | 16bar |
| Test Pressure | 25bar |
Order Information:
Two way breeching inlet,also known as double breeching inlet,is a fixed fire water supply fitting installed on building exterior wall.It connects fire engine hoses to indoor fire pipe network,supplementing water pressure and flow for indoor sprinkler&hydrant systems during fire emergencies.
