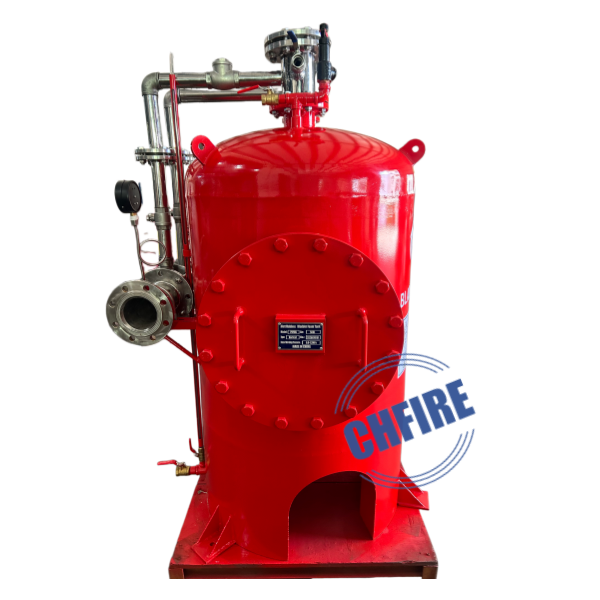

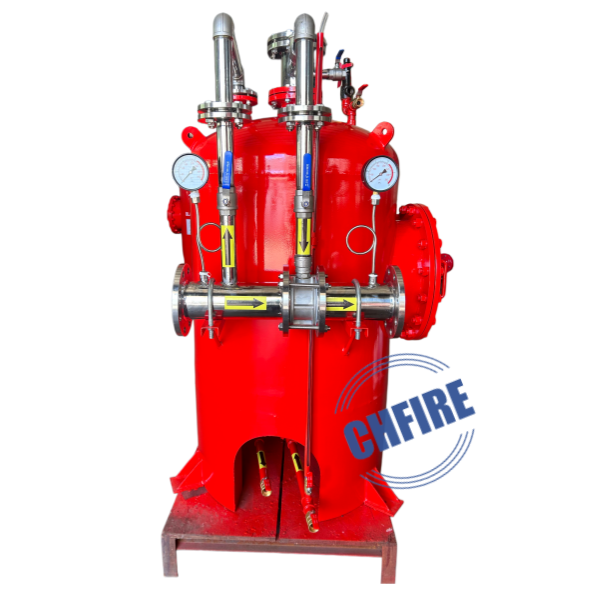

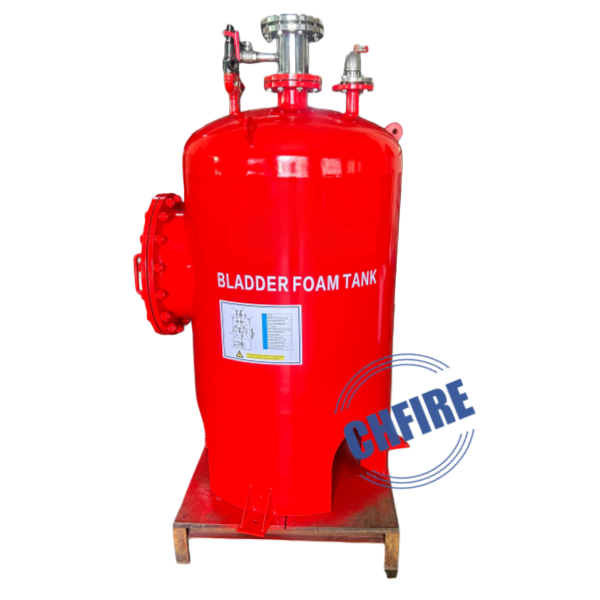

Item Number:CH22-11 Bladder Foam Tank
Tank Orientation: Vertical
Capacity: not less than 3,000 L
Max. Working Pressure : not less than 10 bar
Internal Finishing: Coal Tar Epoxy
External Finishing : Painted Epoxy Flame Red (RAL 3000) , Ladder mounted to exterior
Foam Vessel: Carbon Steel
Foam Bladder: Nylon Reinforced Nitrile Rubber
Foam Proportioner: Carbon Steel with Stainless Steel .
Spool Piece: Carbon Steel
Foam Piping: Stainless Steel
Water Piping: Carbon Steel
Foam Supply Valve: Stainless Steel
Water Charging Valve: Stainless Steel
Bladder Vent / Bladder Drain: Stainless Steel
Vessel Vent / Vessel Drain: Stainless Steel
Thermal Expansion Relief Valve: Copper Alloy / Stainless Steel
Vertical Fire Bladder Foam Tank Specification
| Component | Standard Specification |
| Tank Shell | Carbon Steel Q235B |
| Inner Bladder | EPDM Rubber |
| Working Pressure | Rated Working Pressure 0.6Mpa |
| Test Pressure | Hydraulic Test Pressure: 1.25xrated working pressure |
| Rate Flow | 32LPS,48LPS,64LPS |
| Media | Water, Foam Concentrate 3% or 6% |
