Serial Number: CH43-01
Model: Thread Type
Body Material: Copper Alloy to BS1400
Handwheel Material: Grey Cast Iron to BS1452
Inlet:DN65 Screw Thread
Outlet: DN65 Instananeous to BS336
Working Pressure: 15bar
Set Test: 16.5bar
Body Test: 22bar

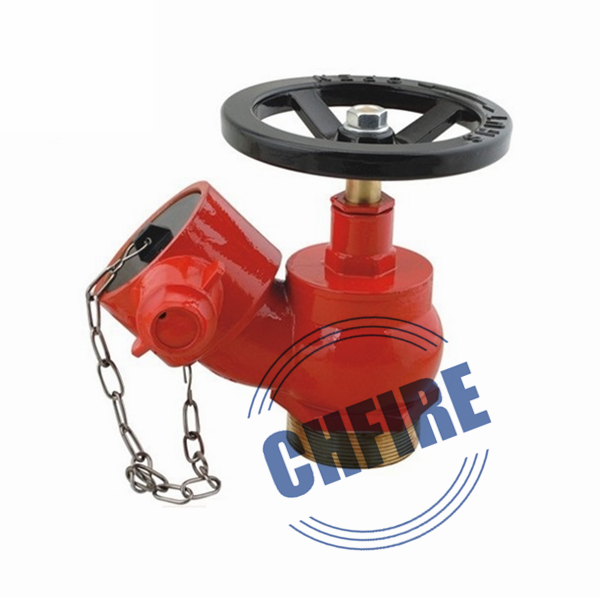

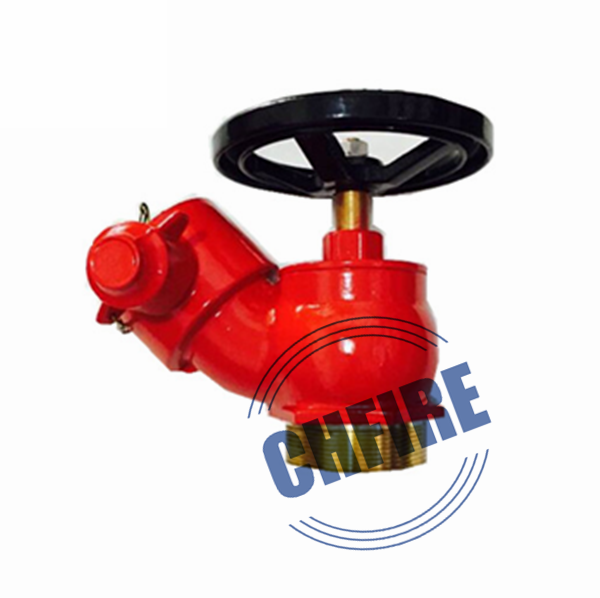

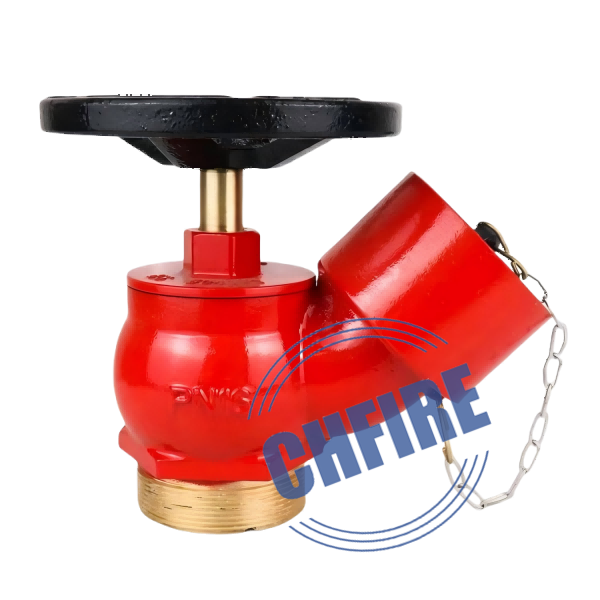

CHFIRE 2 1/2″ Oblique Screw Thread Type Fire Hydrant Landing Valve is a type of globe pattern hydrant valve. The internal casting finishes of every valve is of high quality ensuring a low flow restriction that meets the standard’s water flow test requirement. The landing valves are classified under low pressure and are suitable for use at nominal inlet pressure up to 15 bars. These oblique type landing valves are available with flanged inlet or screwed inlet and are manufactured to comply with BS 5041 Part 1 standard with delivery hose connection and blank cap complying with BS 336:2010 standard.
Product Name | 2.5" Oblique Screw Thread Type Fire Hydrant Landing Valve |
Body Material | Copper Alloy to BS1400 |
Handwheel Material | Grey Cast Iron to BS1452 |
Inlet | DN65 Screw Thead |
Outlet | DN65 Instananeous to BS336 |
Working Pressure | 15Bar |
