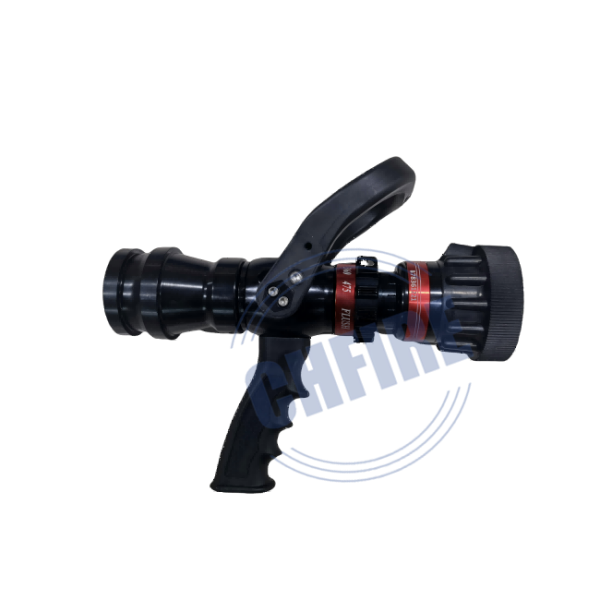

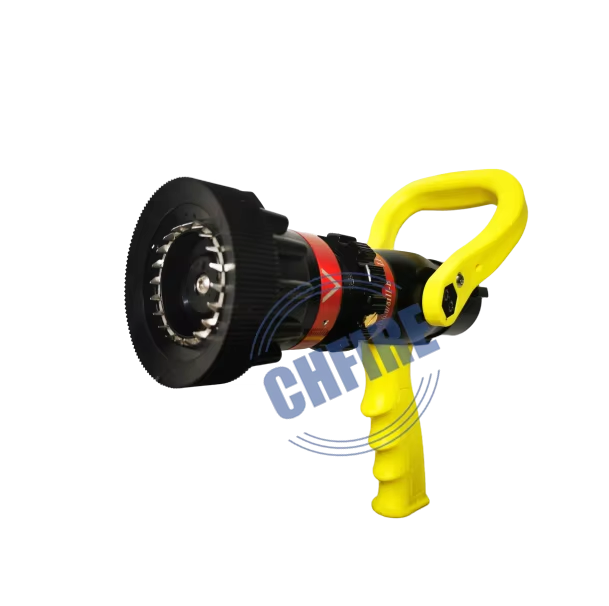

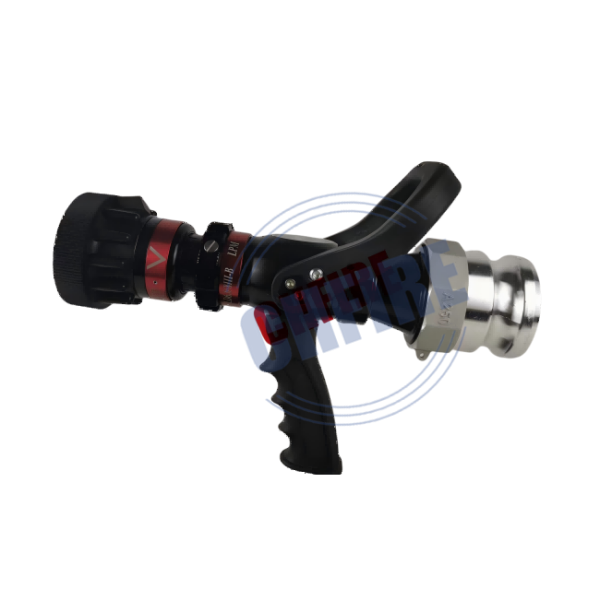

Fire Nozzle Flow Rates

Serial Number: CH26-02

Model: QLD6.0/8III

Material of Body: Aluminum Alloy

Connection Size: 1.5”, 2”, 2.5”

Flow Rate: 115-230-360-475LPM(30-60-95-125GPM);

Water Spray Angle: 120°;

Working Pressure: 7bar;

Max Working Pressure: 16bar

Max Flow Range: 32M

Coupling standard: Storz,NH,NPT,INST,GOST,Machino,etc.

DESCRIPTION

CHFIRE FIREFIGHTING PISTOL GRIP NOZZLE FIRE HOSE NOZZLE FROM CHIAN MANUFACTURER

The multifunctional fire-fighting water gun, also known as the recoilless water gun in the domestic fire-fighting industry, is designed to reduce the recoil as much as possible and prevent the recoil from injuring firefighters.

Model QLD6.0/8III
Serial Number CH26-02
Material of Body Hard Anodized Aluminum Alloy
Material of  Ball Valve ABS(standard), Aluminum Alloy/stainless steel (optional)
Material of  Valve Handle ABS(standard), Aluminum Alloy(optional)
Material of  Pistol Grip ABS
Material of  Bumper Rubber
Working Pressure 7bar
Max Working Pressure 16bar
Jetting Range 32meters @ 7 bar
Max Fog Angle 120°
Flow Range 115-230-360-475LPM - Flush (30-60-95-125GPM)
Inlet 1.5", 2", 2.5" available for Storz,NH,INST,Machino





CHFIRE FIRE FIGHTING EQUIPMENT
