Serial Number: CH26-02
Model: QLD6.0/8III
Material of Body: Aluminum Alloy
Connection Size: 1.5”, 2”, 2.5”
Flow Rate: 115-230-360-475LPM(30-60-95-125GPM);
Water Spray Angle: 120°;
Working Pressure: 7bar;
Max Working Pressure: 16bar
Max Flow Range: 32M
Coupling standard: Storz,NH,NPT,INST,GOST,Machino,etc.

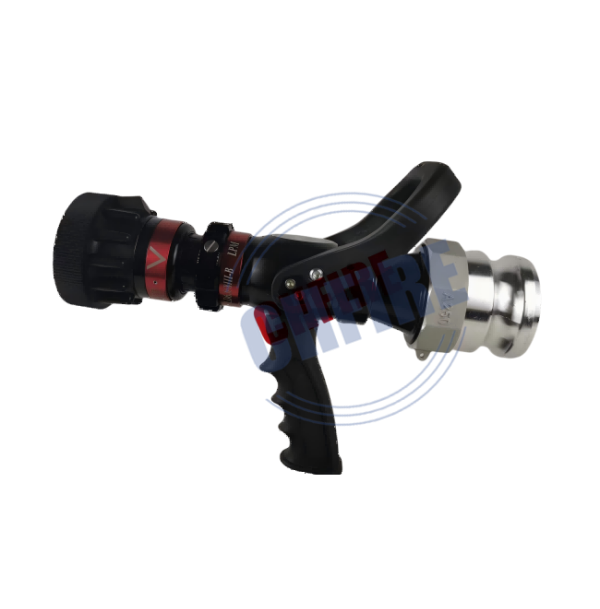

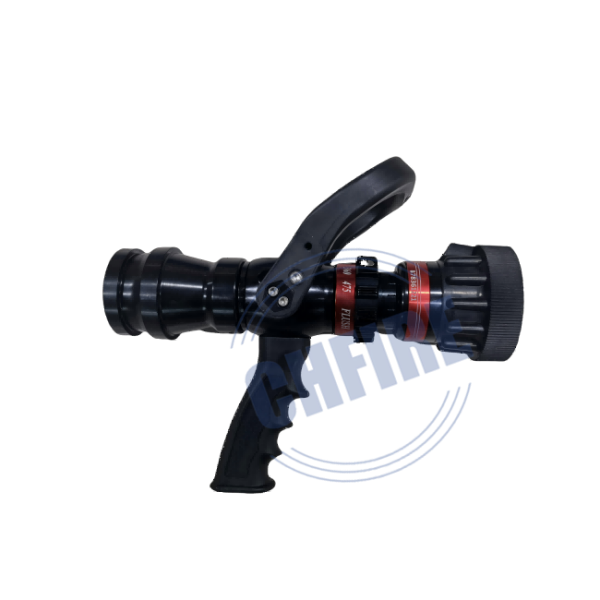

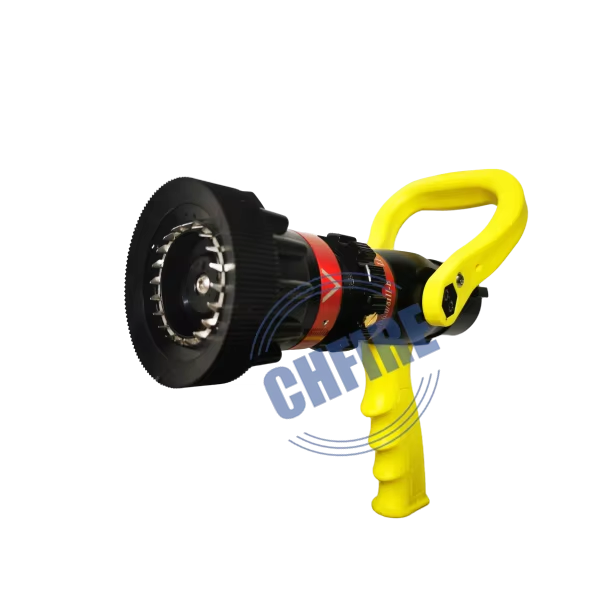

CHFIRE FIREFIGHTING PISTOL GRIP NOZZLE FIRE HOSE NOZZLE FROM CHIAN MANUFACTURER
CHFIRE brand QLD6.0/8III Fire hose nozzle is made of hard anodized aluminium alloy, it can reach 30-60-95-125GPM flow rate when connected with the hose, the jetting pattern can change between straight stream and fog It has the advantages of long range, large water volume, etc.
| Model | QLD6.0/8III |
| Serial Number | CH26-02 |
| Material of Body | Hard Anodized Aluminum Alloy |
| Material of Ball Valve | ABS(standard), Aluminum Alloy/stainless steel (optional) |
| Material of Valve Handle | ABS(standard), Aluminum Alloy(optional) |
| Material of Pistol Grip | ABS |
| Material of Bumper | Rubber |
| Working Pressure | 7bar |
| Max Working Pressure | 16bar |
| Jetting Range | 32meters @ 7 bar |
| Max Fog Angle | 120° |
| Flow Range | 115-230-360-475LPM - Flush (30-60-95-125GPM) |
| Inlet | 1.5", 2", 2.5" available for Storz,NH,INST,Machino |
