Material: Cast Iron

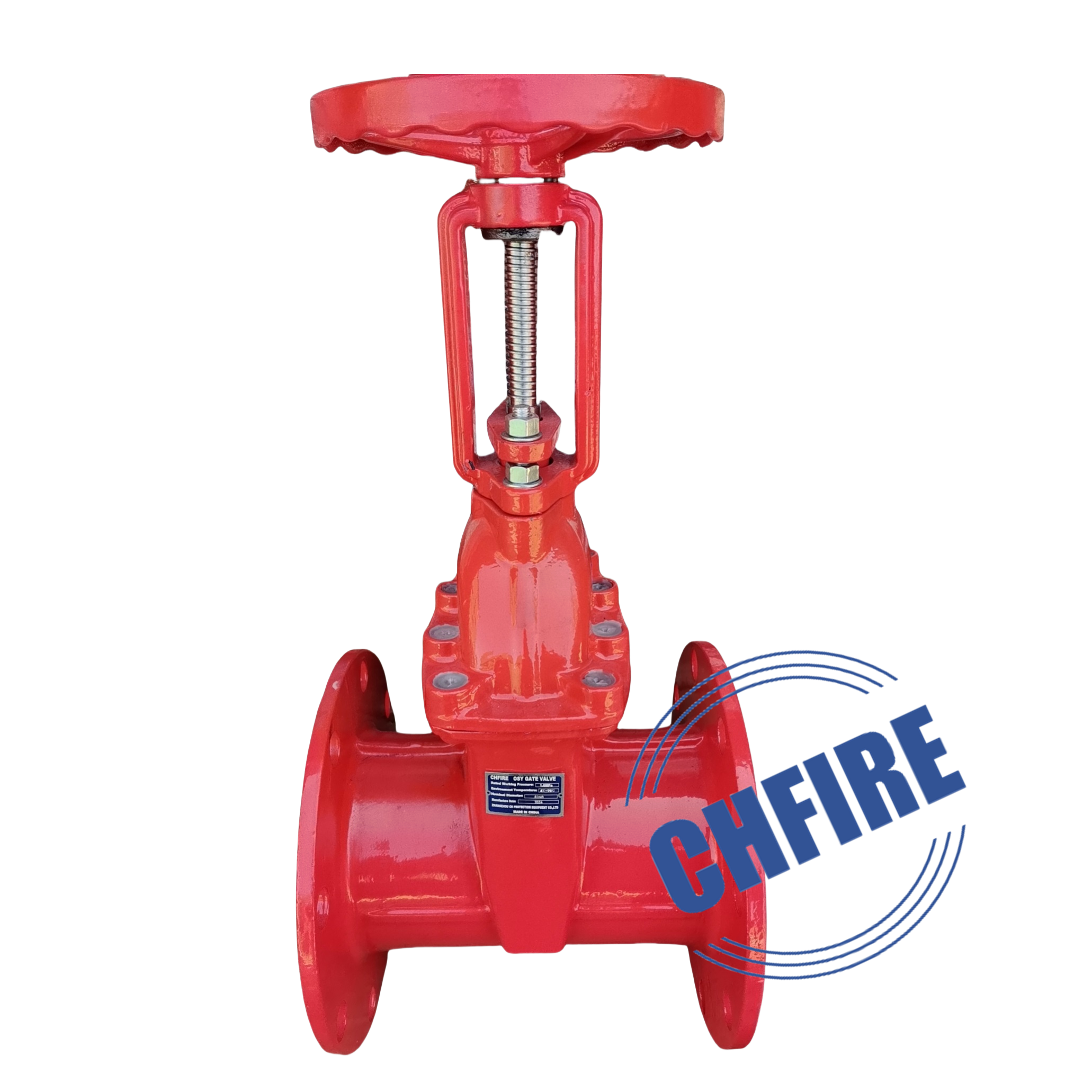

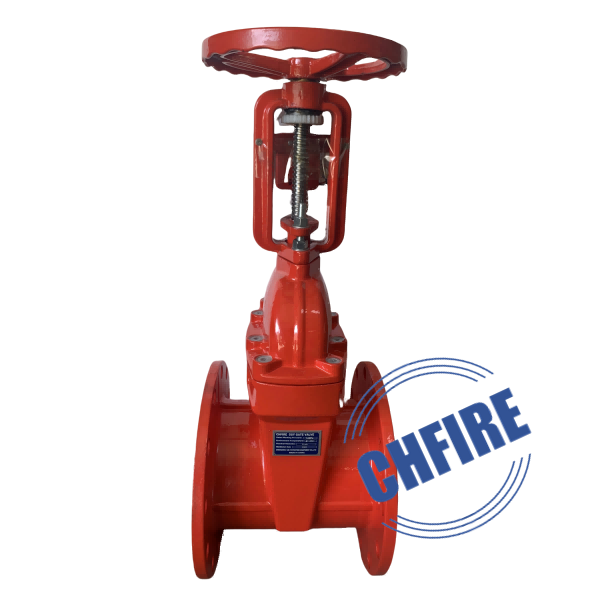

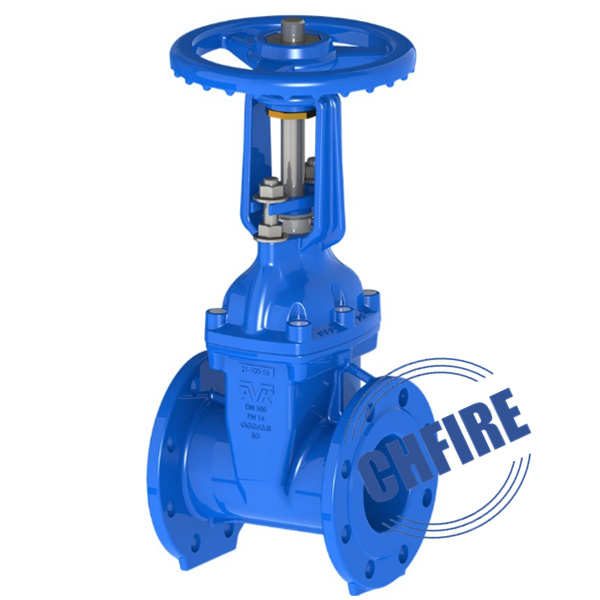

Type: OSY (Rising stem soft-sealed gate valve)
Connection: Flange End;
Media: Water
| Model Number | size | mm | connection | Type | working pressure | color |
| Z41X-16Q-50 | 2" | 50 | Flange End | OSY | 1.0-1.6MPA | Red/Blue |
| Z41X-16Q-65 | 2.5" | 65 | Flange End | OSY | 1.0-1.6MPA | Red/Blue |
| Z41X-16Q-80 | 3" | 80 | Flange End | OSY | 1.0-1.6MPA | Red/Blue |
| Z41X-16Q-100 | 4" | 100 | Flange End | OSY | 1.0-1.6MPA | Red/Blue |
| Z41X-16Q-125 | 5" | 125 | Flange End | OSY | 1.0-1.6MPA | Red/Blue |
| Z41X-16Q-150 | 6" | 150 | Flange End | OSY | 1.0-1.6MPA | Red/Blue |
| Z41X-16Q-200 | 8" | 200 | Flange End | OSY | 1.0-1.6MPA | Red/Blue |
| Z41X-16Q-250 | 10" | 250 | Flange End | OSY | 1.0-1.6MPA | Red/Blue |
| Z41X-16Q-300 | 12" | 300 | Flange End | OSY | 1.0-1.6MPA | Red/Blue |
| Z41X-16Q-350 | 14" | 350 | Flange End | OSY | 1.0-1.6MPA | Red/Blue |
| Z41X-16Q-400 | 16" | 400 | Flange End | OSY | 1.0-1.6MPA | Red/Blue |
