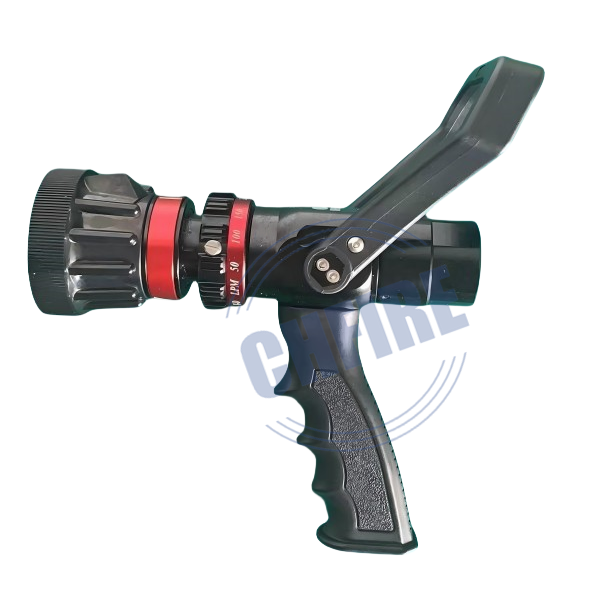

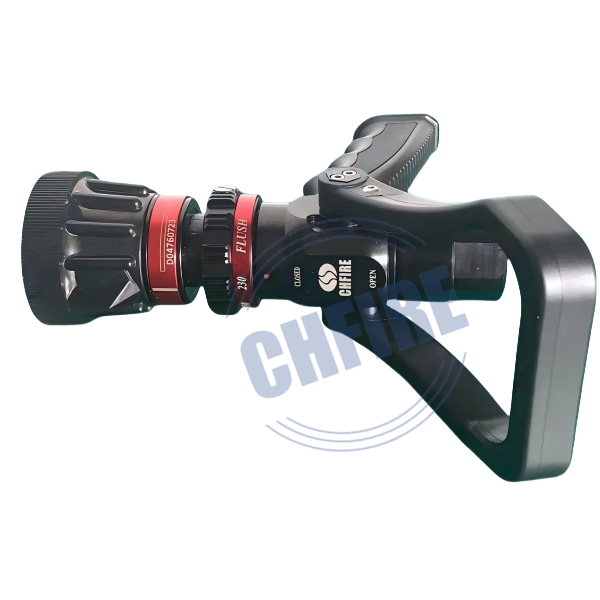

235LPM Selectable Fire Nozzle
Features:
Hard anodized aluminum , Laser engraved;
Simple to operate (1/4 turn from straight stream to fog);
Raised lug marks straight stream for limited visibility operations ;
Easy to service & repair;
Compatible with quick attach foam tube .
This selectable fire hose nozzle has four flow classes,60-130-230 LPM-Flush, and it is available both for straight stream,fog sprayand flush without shutting down. Our Advantages. It shall have spinning teeth, multiple pattern detent, pistol grip and Hard Anodized Aluminum Alloy body. The nozzle shall also have a 120° angle at wide fog, a 2.5 (65 mm) swivel inlet.
| Model | 60 - 130 - 235 LPM |
| Material of Body | Hard Anodized Aluminum Alloy |
| Material of Ball Valve | ABS(standard), Aluminum Alloy/stainless steel (optional) |
| Material of Valve Handle | ABS(standard), Aluminum Alloy(optional) |
| Material of Pistol Grip | ABS |
| Material of Bumper | Rubber |
| Working Pressure | 7bar |
| Max Working Pressure | 10bar |
| Jetting Range | 34meters @ 7 bar |
| Max Fog Angle | 120° |
| Flow Range | 60 - 130 - 235 LPM, Flush (15 - 30 - 60 GPM), three pattern adjustable |
| Inlet | 1 inch and 1.5", available for Storz,NH,INST,Machino |
