Flow Rate: 50-100-150-230LPM;
Water Spray Angle: 180°;
Working Pressure: 7bar;
Max Working Pressure: 16bar
Max Flow Range: 25M
Coupling standard: Storz,NH,NPT,INST,GOST,Machino,etc.

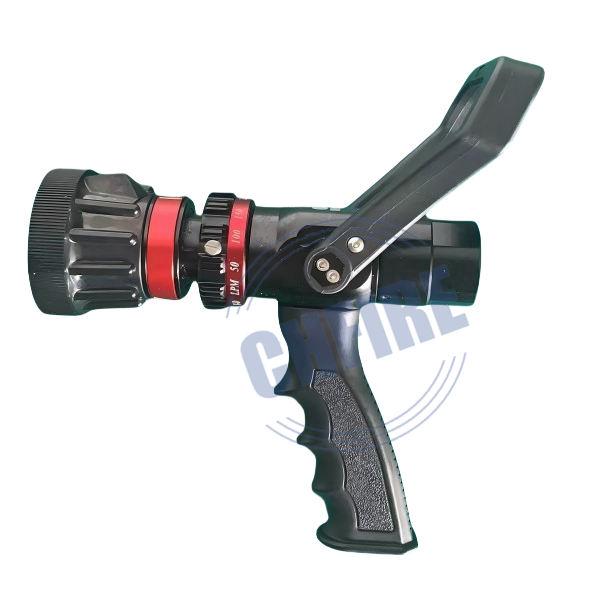

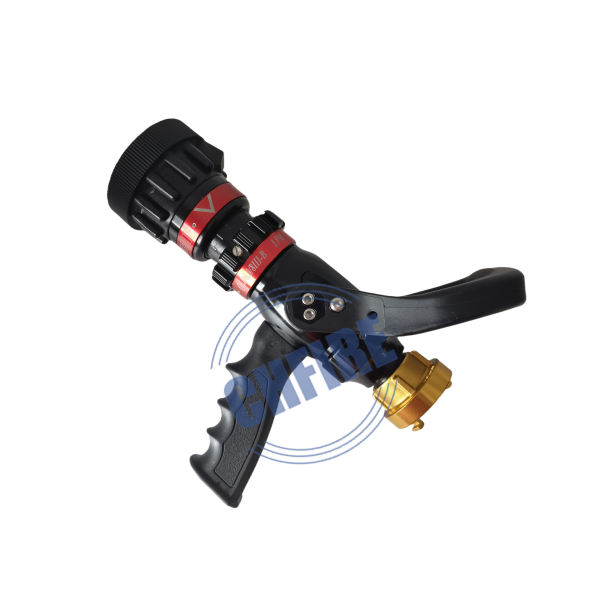

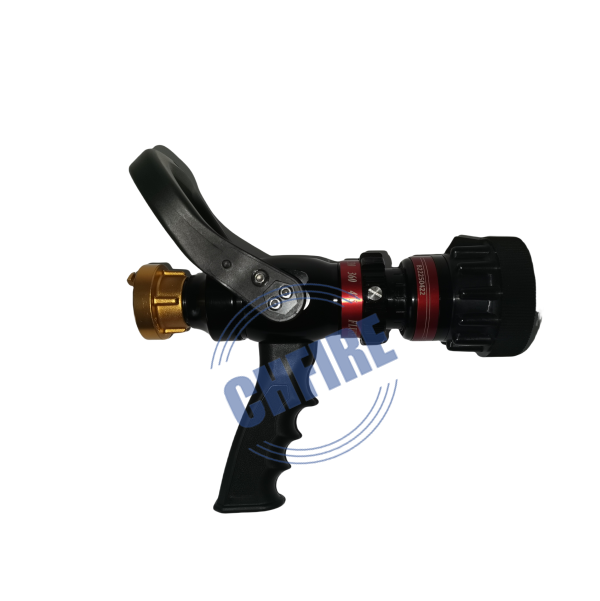

CHFIRE FIREFIGHTING PISTOL GRIP NOZZLE FIRE HOSE NOZZLE FROM CHIAN MANUFACTURER
The multifunctional water gun is a commonly used firefighting equipment in the firefighting field, with the core function of adjustable spraying form. This equipment can realize the rapid switching of various water flow forms such as direct current jet and mist jet through mechanical adjustment device, and can improve the adaptability of fire scene when used in combination. Its small reaction force makes single-person operation more convenient, and it also has the additional function of straightening out the twisted state of the water hose. In actual firefighting, firefighters can flexibly adjust the spraying mode according to the specific conditions such as the type of combustibles and the intensity of combustion in the fire scene, taking into account the needs of long-distance precision spraying and large-area coverage and cooling.
| Model | QLD6.0/4III-D |
| Material of Body | Hard Anodized Aluminum Alloy |
| Material of Ball Valve | ABS(standard), Aluminum Alloy/stainless steel (optional) |
| Material of Valve Handle | ABS(standard), Aluminum Alloy(optional) |
| Material of Pistol Grip | ABS |
| Material of Bumper | Rubber |
| Working Pressure | 7bar |
| Max Working Pressure | 16bar |
| Jetting Range | 25meters @ 7 bar |
| Max Fog Angle | 120° |
| Flow Range | 50 - 100 - 150 - 230LPM- Flush(13-25-40-60GPM) |
| Inlet | 3/4", 1inch, 1.5", available for Storz,NH,INST,Machino |
CHFIRE FIRE FIGHTING EQUIPMENT
200X pressure reducing and stabilizing valve consists of main valve, pilot valve, needle valve, ball valve, micro filter and pressure gauge to form hydraulic control takeover system. When in use, after the outlet pressure is adjusted, it can automatically maintain a stable outlet pressure.
A filter must be installed before the 500X pressure relief valve and the pressure holding valve. When adjusting, the screw on the pilot valve should be withdrawn, the water pump should be started to discharge from the pressure relief valve, and the adjusting screw should be gradually screwed in to gradually increase the pressure until the required set pressure is reached. Tighten the nut after adjustment.
The balanced foam proportion mixing device is a relatively advanced foam fire extinguishing device, which is particularly suitable for important fire fighting projects such as petrochemical enterprises, large oil depots, oil terminals and offshore drilling platforms.
In firefighting, two way inlet dividing water breeching play a vital role. They are not only a key component in firefighting equipment, but also an important guarantee for firefighters to perform their tasks safely and efficiently. By deeply understanding the functions and usage of water distributors, we can better understand their indispensable role in firefighting.
Fire sprinkler heads are used in fire sprinkler systems. When a fire occurs, water is sprayed out through the sprinkler head splash plate to extinguish the fire. They are divided into pendent sprinkler heads, upright sprinkler heads, ordinary sprinkler heads, side wall sprinkler heads, etc.
The CHFIRE brand BS750 Fire hydrant is normally used by the fire service, it is made of ductile iron and brass according to BS 750.
French Type Fire Hose Reel is designed by NF EN671-1:2012 standard, it is hot selling in French Marketing.
The UL-FM water flow indicator is a component of the automatic sprinkler fire extinguishing system, which is generally installed on the water distribution main or the beginning of the water distribution pipe on the system network side. When the blade senses the water flow signal, it will convert the water flow signal into an electrical signal. After receiving the signal, the automatic alarm controller will issue a command pneumatic alarm system or start electrical equipment such as fire pumps, and can display the firearea. This product is suitable for wet, dryand pre-action automatic fire extinguishing systems.
Place of Origin: Fujian, China Brand Name: CHFIRE Model Number: CH22-53 fire water & foam monitor Application: fire water system/ fire foam system Body material: aluminum Flow Rate: PL30/PL50
High pressure anodized aluminum 1inch, 1 1/2 inch, 2inch, 2 1/2inch NH pistol grip ball shut-off valve is lightweight and durable. Features a cast aluminum bale and durable polymer pistol grip that is easily removed. Pistol grip allows for stable and comfortable use. Valve has polymer ball and seating for reduced friction when opening and closing valve under pressure.May be used with any NH or NST threaded nozzle.
CH26-16 High Pressure Nozzle with Trigger Shutoff
