Flow Rate: 500 LPM,1000 LPM;
Water Spray Angle: 180°;
Water channels for good performance;
Coupling standard: Storz,NH,NPT,INST,GOST,Machino,etc.

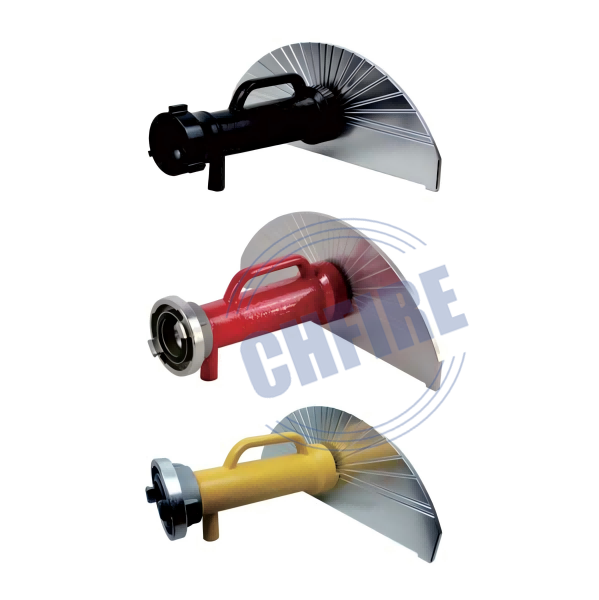

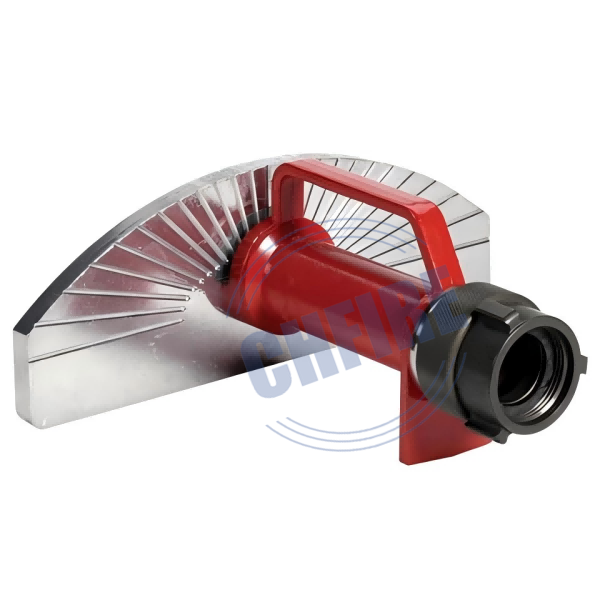

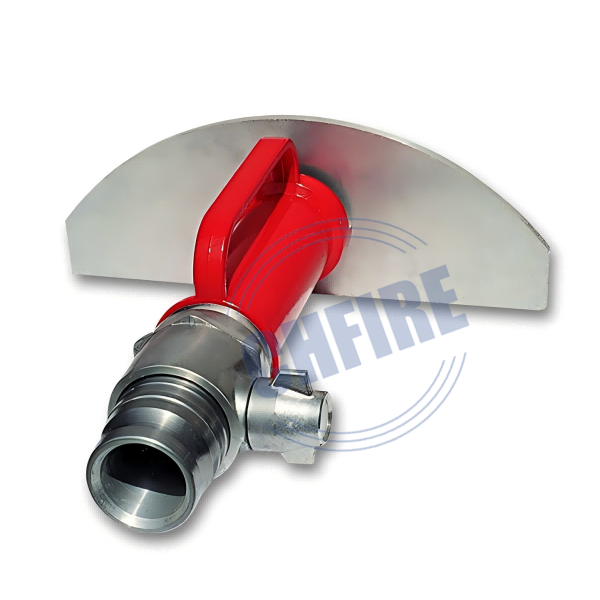

The Water Wall Curtain Fire Nozzle is an effective fire nozzle, which is widely used in fire fighting in various places. Its main function is to form a solid water curtain by spraying high-pressure water, so as to isolate the fire source and reduce the fire. At the same time, the spray range of this fire nozzle is wide, can cover a large area, and has a very strong fire protection effect.
| Model | Material | Inlet Size | working pressure | water wall size | water wall angle |
| #CH26-03A1 | Hard Anodized Aluminum Alloy | 2" | 7bar | 24m wight,7m high | 180° |
| #CH26-03A2 | Hard Anodized Aluminum Alloy | 2.5" | 7bar | 26m wight,8m high | 180° |
| #CH26-03A3 | Hard Anodized Aluminum Alloy | 2.5" | 7bar | 27m wight,9m high | 180° |
A water flow indicator, also known as a flow switch, is an electro-mechanical device designed to send a signal to a local alarm or monitored panel or fire department when a continuous flow of water occurs through a fire sprinkler system’s piping. This flow signifies an activated sprinkler head or a leak in the system.
125GPM Pistol Grip Fire Nozzle is designed for use with low pressure mainline hoses providing exceptional performance and long-term value.
CHFIRE PSKD20 electric fire monitor (#CH22-90)
CH26-16 High Pressure Nozzle with Trigger Shutoff
Place of Origin: Fujian, China Brand Name: CHFIRE Model Number: CH-22-10 foam bladder tank, PHYM Rate of Flow: 32 L/S, 48 L/S, 80 L/S Inlet and Outlet: DN100 - DN250 Mixing Ratio: 3% -6% Foam Tank Material: Carbon Steel Tank Capacity: 500L and more
