Flow Rate: 50-100-150-230LPM;
Water Spray Angle: 180°;
Working Pressure: 7bar;
Max Working Pressure: 16bar
Max Flow Range: 25M
Coupling standard: Storz,NH,NPT,INST,GOST,Machino,etc.

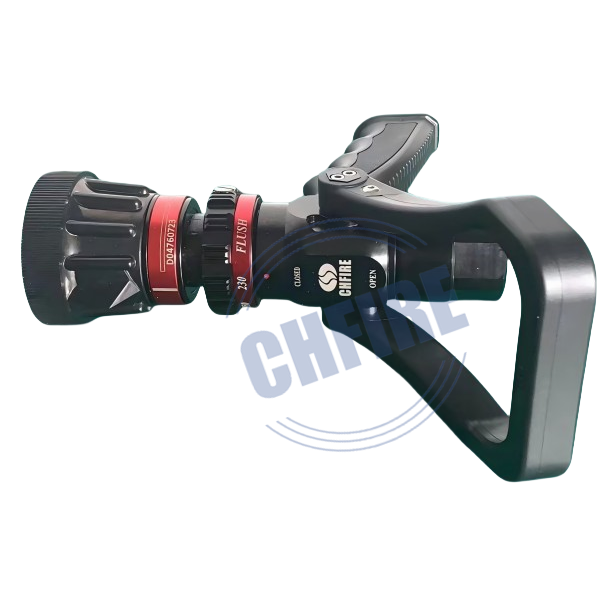

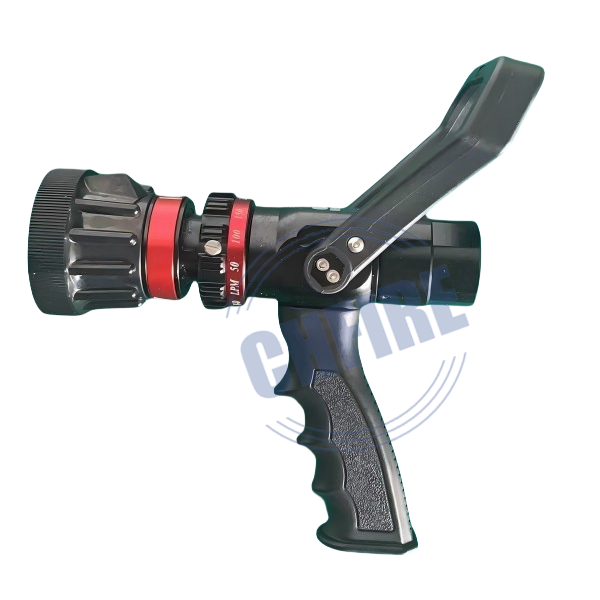

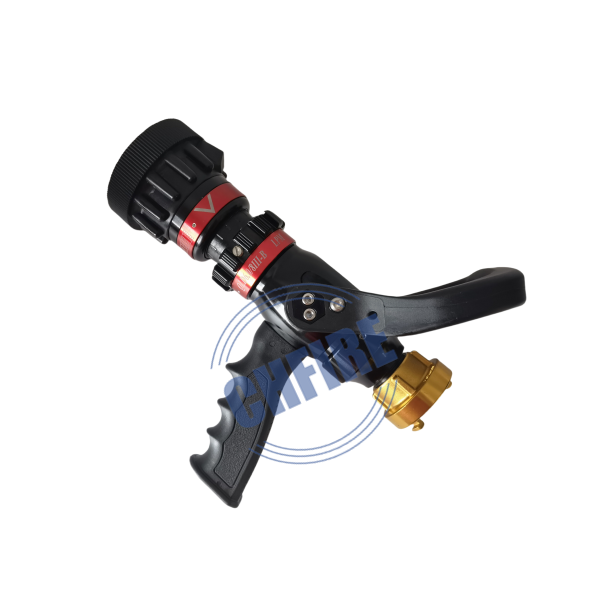

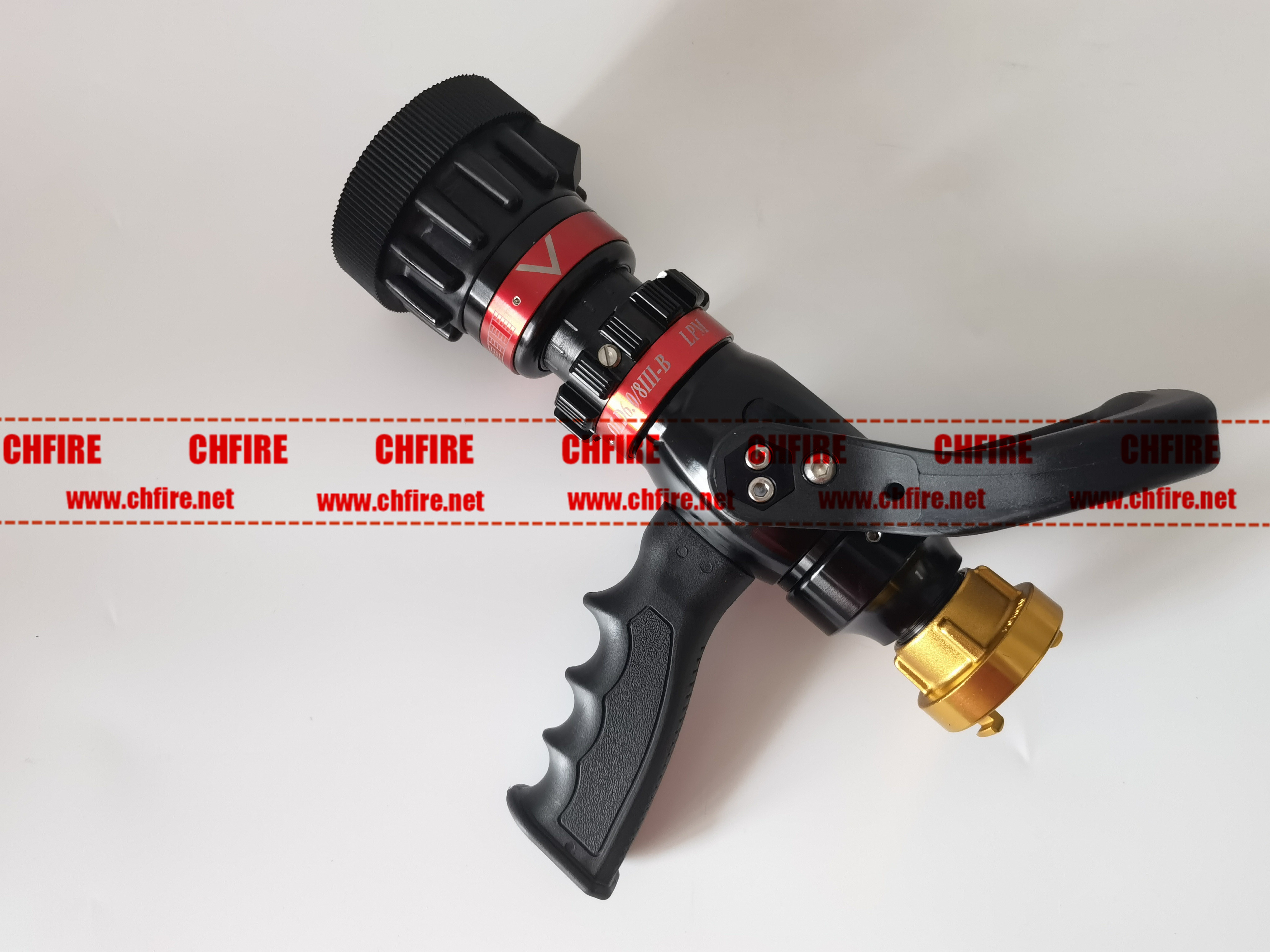

CHFIRE FIREFIGHTING PISTOL GRIP NOZZLE FIRE HOSE NOZZLE FROM CHIAN MANUFACTURER
The multifunctional water gun is a commonly used firefighting equipment in the firefighting field, with the core function of adjustable spraying form. This equipment can realize the rapid switching of various water flow forms such as direct current jet and mist jet through mechanical adjustment device, and can improve the adaptability of fire scene when used in combination. Its small reaction force makes single-person operation more convenient, and it also has the additional function of straightening out the twisted state of the water hose. In actual firefighting, firefighters can flexibly adjust the spraying mode according to the specific conditions such as the type of combustibles and the intensity of combustion in the fire scene, taking into account the needs of long-distance precision spraying and large-area coverage and cooling.
| Model | QLD6.0/4III-D |
| Material of Body | Hard Anodized Aluminum Alloy |
| Material of Ball Valve | ABS(standard), Aluminum Alloy/stainless steel (optional) |
| Material of Valve Handle | ABS(standard), Aluminum Alloy(optional) |
| Material of Pistol Grip | ABS |
| Material of Bumper | Rubber |
| Working Pressure | 7bar |
| Max Working Pressure | 16bar |
| Jetting Range | 25meters @ 7 bar |
| Max Fog Angle | 120° |
| Flow Range | 50 - 100 - 150 - 230LPM- Flush(13-25-40-60GPM) |
| Inlet | 1inch, 1.5", available for Storz,NH,INST,Machino |
CHFIRE FIRE FIGHTING EQUIPMENT
500X pressure relief valve is a device used in water supply pipe network systems and urban water supply projects in high-rise buildings and living areas. The device consists of a main valve, pilot valve, needle valve, ball valve, micro filter and pressure gauge to form a hydraulic control takeover system. It uses hydraulic automatic operation and can be used as a pressure relief valve or a pressure holding valve.
PHP is an independent proportioning and mixing system that automatically adjusts according to flow and pressure. It is usually installed near the foam tank and connected to the foam tank, fire pressure water source and foam generating equipment through pipes. When a fire occurs, the foam pump starts to suck the foam from the foam tank into the proportioning mixer pipe. After being adjusted by the pressure balance valve and the proportioning mixer, a certain amount of foam is injected into the pressure water flowing through the proportioning mixer and forms a concentrate, which then flows to the foam generating equipment, such as foam guns, foam cannons, etc., and finally produces foam fire extinguishing.
The foam proportioning device is suitable for oil tank areas and refineries, petrochemical enterprises, hangars, port areas, cargo storage yards, warehouses, gas stations, paint storage areas, etc.
In firefighting, two way inlet dividing water breeching play a vital role. They are not only a key component in firefighting equipment, but also an important guarantee for firefighters to perform their tasks safely and efficiently. By deeply understanding the functions and usage of water distributors, we can better understand their indispensable role in firefighting.
Fire sprinkler is an important part of fire sprinkler system, which is mainly used to control and extinguish fire by spraying water when fire occurs. There are many types of fire sprinkler, each type has its specific application scenario and function.
The Quick Attack Foam Tubes are designed to easily and quickly latch on to various CHFIRE® nozzles
French Type Fire Hose Reel is designed by NF EN671-1:2012 standard, it is hot selling in French Marketing.
A water flow indicator, also known as a flow switch, is an electro-mechanical device designed to send a signal to a local alarm or monitored panel or fire department when a continuous flow of water occurs through a fire sprinkler system’s piping. This flow signifies an activated sprinkler head or a leak in the system.
The CHFIRE Brand Quad Stacked Nozzle Manual Fire Monitor is durable, lightweight construction which is compatible with aerial platform applications. This state-of-the-art equipment has a quad stacked nozzle, which allows it to deliver a focused, powerful stream of water to put out fires quickly and effectively.
CHFIRE PSKD20 electric fire monitor (#CH22-90)
Place of Origin:Fujian, China Brand Name: CHFIRE Model Number: CH22-17 foam generator Type: PCL/PC Working pressure: 0.3~0.6 MPa Nominal pressure: 0.5Mpa Rated flow: 4/8/16/24 L/S Outlet: 4"
