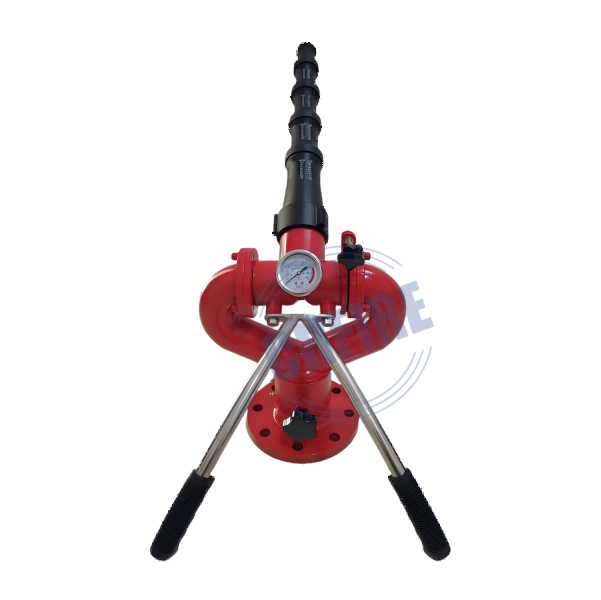

Quad Stacked Nozzle Fire Water Monitor Features
Aluminium alloy construction,hard coated anodized;
Flow Rate: 20-40 LPS (Stacked Tips Adjustable);
Jetting Pattern: Straight stream;
Flange standard: BS4504,ANSI150,GB,etc.;
The CHFIRE brand Quad Stacked Nozzle Manual Fire Monitor is an innovative and efficient tool in the firefighting industry and forest.
| Model Number | CH22-24B |
|---|---|
| Flow Rate | 22-37LPS / 26-44LPS / 36-60LPS / 47-78LPS |
| Working Pressure | 10 Bar |
| Max. Reach | 70 meters @ 3000 LPM |
| Max Range Of Motion | -45°to+70° Vertically, 360° Rotation |
| Waterway Size | 2.5"(65mm) |
| Monitor Outlet | 2.5"(65mm) BSP male thread (NH is optional) |
| Monitor Inlet | Flange 4" BS4504 is standard,other size and standard available |
| Material Monitor&Nozzle | Hard coated anodized aluminium alloy / Tiller-SS304 Stainless steel |
CHFIRE 950LPM(250GPM) Pistol Grip Fire Nozzle is a Multi Purpose Fire Nozzles. With big flow rate of 950 LPM(250GPM), shall be a good help to extinguisher rapidly.
125GPM Pistol Grip Fire Nozzle is designed for use with low pressure mainline hoses providing exceptional performance and long-term value.
High pressure anodized aluminum 1inch, 1 1/2 inch, 2inch, 2 1/2inch NH pistol grip ball shut-off valve is lightweight and durable. Features a cast aluminum bale and durable polymer pistol grip that is easily removed. Pistol grip allows for stable and comfortable use. Valve has polymer ball and seating for reduced friction when opening and closing valve under pressure.May be used with any NH or NST threaded nozzle.
CHFIRE PSKD20 electric fire monitor (#CH22-90)
Place of Origin: Fujian, China Brand Name: CHFIRE Model Number: CH-22-10 foam bladder tank, PHYM Rate of Flow: 32 L/S, 48 L/S, 80 L/S Inlet and Outlet: DN100 - DN250 Mixing Ratio: 3% -6% Foam Tank Material: Carbon Steel Tank Capacity: 500L and more
The cabinet comes with a key lock to give it added protection. -Stronge durable metal construction -Powder coated finish -Unique hinged-base opening mechanism -Identification label supplied -Highly visible colouring -Lockable door -Made of steel,hard to penetrate
