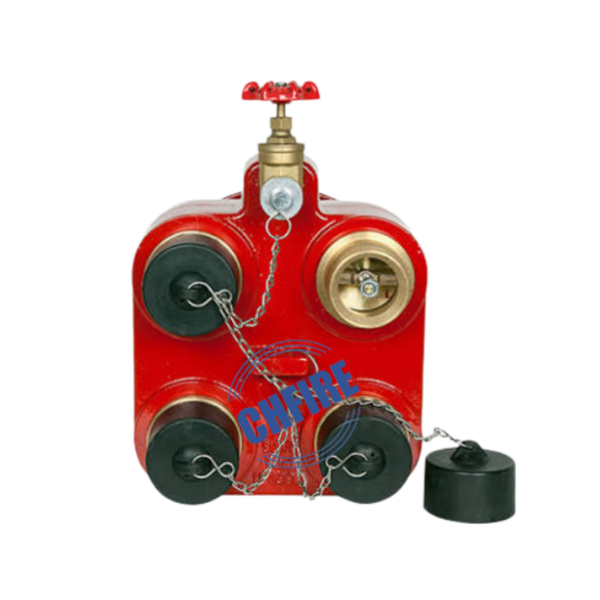

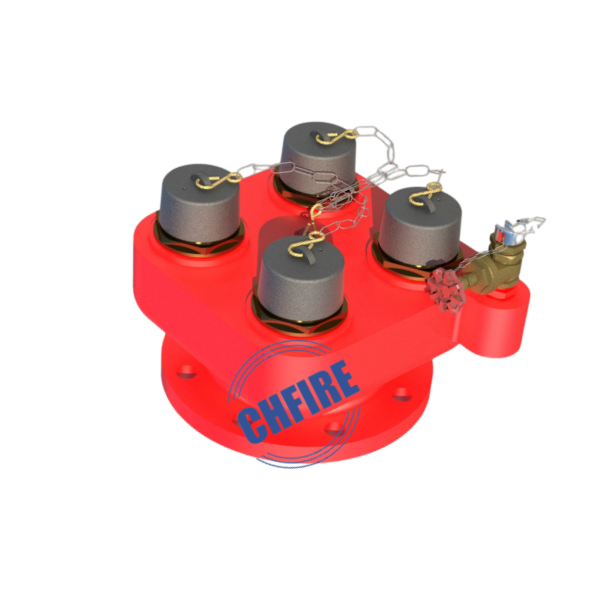

Item Number: CH20-04 4 way breeching inlet
Body Material: Ductile iron as EN-GJS-450-10
Outlet Material: Copper alloy to BS 1400
Outlet Cap: 2 pcs black PE/rubber
Drain Valve: 1" Brass gate valve to BS5154
Drain Valve Cap: 1" Brass as BS CZ121
CHFIRE dry riser inlets 4 way breeching inlet are typically installed on building outer wall, connect flange to indoor fire main. They are used to increase the pressure in the building's fire sprinkler systems.
| Model: | 4 Way Breeching Inlet |
| Inlet: | DN100 PN16 Flanged as EN 1092-2 |
| Outlet | 4x2.5"(DN65) British Instananeous |
| Test: | Factory hydro test 30 bar |
| Environment Temperature | 0°C to 38°C |
| Color | RAL3000 epoxy coating |
| Carton Size: | 40x30x25cm/1pc. |
| N.W./G.W.: | 33KG/34KG |
Order Information:
What is your MOQ?
RE: No MOQ is required for in stock items. For orders requiring production, we will discuss the specific MOQ based on the customer's actual demand.
Can you do OEM and ODM?
Yes. OEM and ODM orders are subject to quantity requirements.
What is the payment term?
RE: TT, Western Union available.

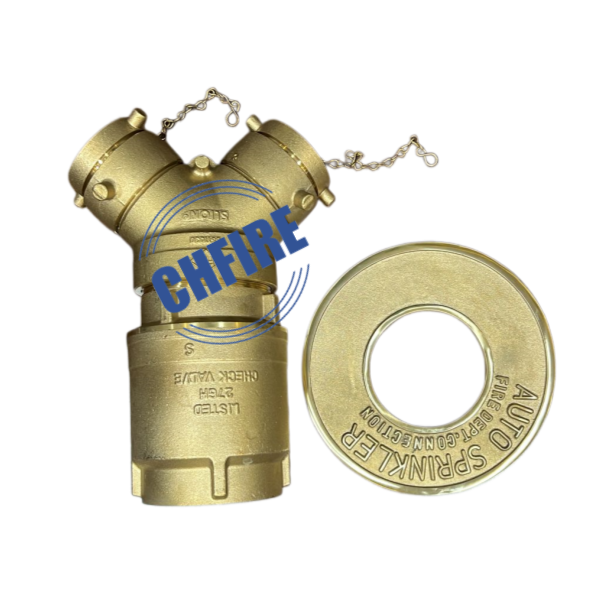

The fire department connection is a critical facility in building fire protection systems, which allows firefighters to connect external fire pumps to pressurize and replenish water for the building's indoor sprinkler systems and fire hydrant networks.
Fixed or wall-mounted in commercial,industrial,and public buildings,quick-response first-attack firefighting equipment.
The stainless steel manual fire monitor is a firefighting device made of stainless steel. It is primarily used for long-range fire suppression and features corrosion resistance and high strength. Made of stainless steel, it offers high strength and corrosion resistance, making it suitable for harsh environments. Manually operated via a worm gear or handle, it allows for horizontal slewing and pitching, with reliable locking.
Fire monitors are a type of fire monitor. They primarily spray firewater and can extinguish fires involving solid materials. Currently, manual fire monitors are popular among the public due to their low price, long service life, and virtually no maintenance costs.
CHFIRE brand QLD6.0/4.0III-D Fire fighting nozzle can reach 13-25-40-60GPM flow rate. Forestry fire nozzle is a water jet tool for extinguishing fire. It will spray dense and substantial water flow when connected with the hose. It has the advantages of long range, large water volume, etc.
Double-door fire fighting cabinets are mainly used to store push-type fire extinguishers, fire hoses, dry powder fire extinguishers and other equipment. Some models support layered storage of different types of fire fighting equipment.
The fire three-way water distributor is a device specially used in fire protection systems. Its main function is to reasonably distribute and control the water flow to ensure that water can be quickly and effectively delivered to various parts that need fire extinguishing when a fire occurs.
In firefighting, two way inlet dividing water breeching play a vital role. They are not only a key component in firefighting equipment, but also an important guarantee for firefighters to perform their tasks safely and efficiently. By deeply understanding the functions and usage of water distributors, we can better understand their indispensable role in firefighting.
CHFIRE PSKD20 electric fire monitor (#CH22-90)
