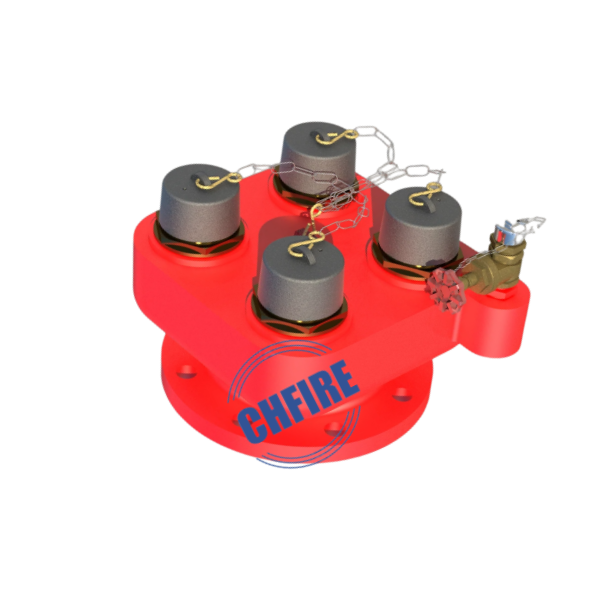

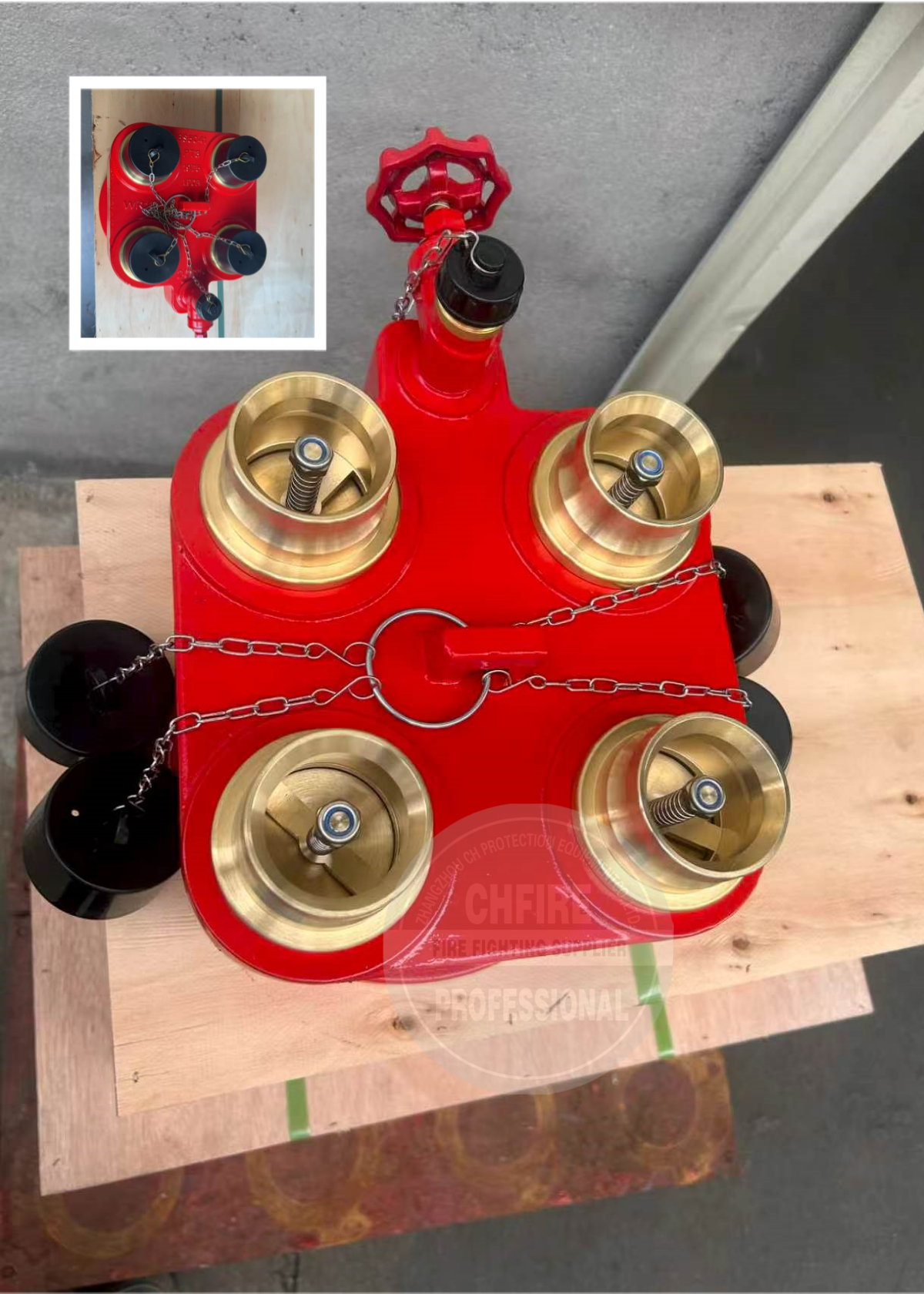

Item Number: CH20-04 4 way breeching inlet
Body Material: Ductile iron as EN-GJS-450-10
Outlet Material: Copper alloy to BS 1400
Outlet Cap: 2 pcs black PE/rubber
Drain Valve: 1" Brass gate valve to BS5154
Drain Valve Cap: 1" Brass as BS CZ121
CHFIRE 4 way breeching inlet are typically installed on building outer wall, connect flange to indoor fire main. They are used to increase the pressure in the building's fire sprinkler systems.
| Model: | 4 Way Breeching Inlet |
| Inlet: | DN100 PN16 Flanged as EN 1092-2 |
| Outlet | 4x2.5"(DN65) British Instananeous |
| Test: | Factory hydro test 30 bar |
| Environment Temperature | 0°C to 38°C |
| Color | RAL3000 epoxy coating |
| Carton Size: | 40x30x25cm/1pc. |
| N.W./G.W.: | 33KG/34KG |
Order Information:
What is your MOQ?
RE: No MOQ is required for in stock items. For orders requiring production, we will discuss the specific MOQ based on the customer's actual demand.
Can you do OEM and ODM?
Yes. OEM and ODM orders are subject to quantity requirements.
What is the payment term?
RE: TT, Western Union available.
