Flow Rate: 50-100-150-230LPM(13-25-40-60GPM);
Water Spray Angle: 180°;
Working Pressure: 7bar;
Max Working Pressure: 16bar
Max Flow Range: 25M
Coupling standard: Storz,NH,NPT,INST,GOST,Machino,etc.

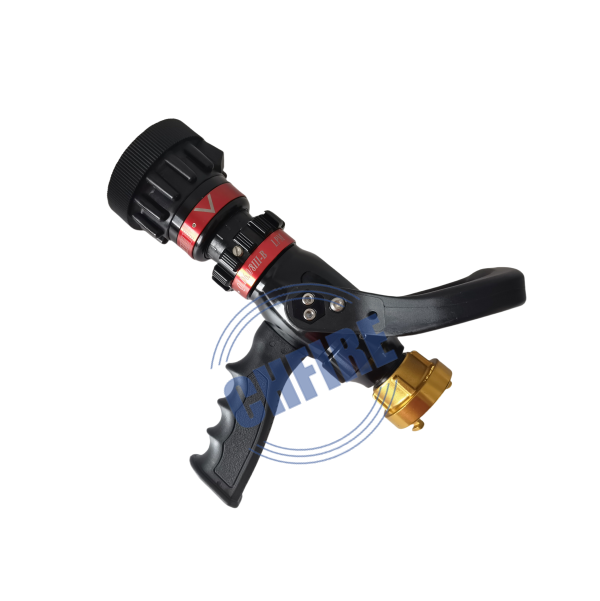

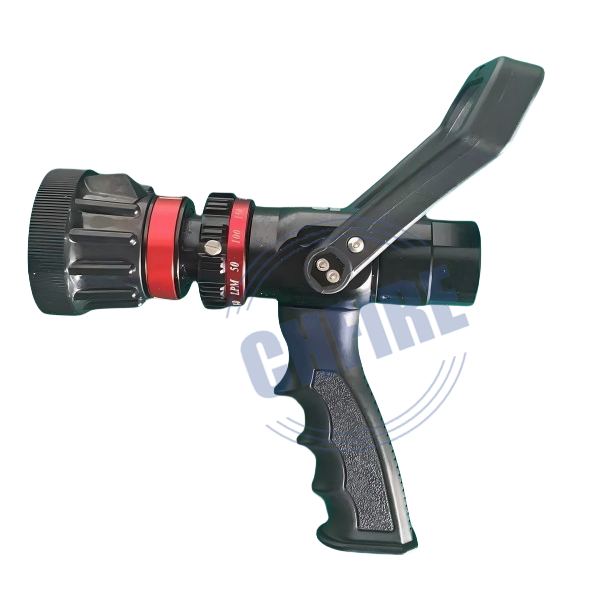

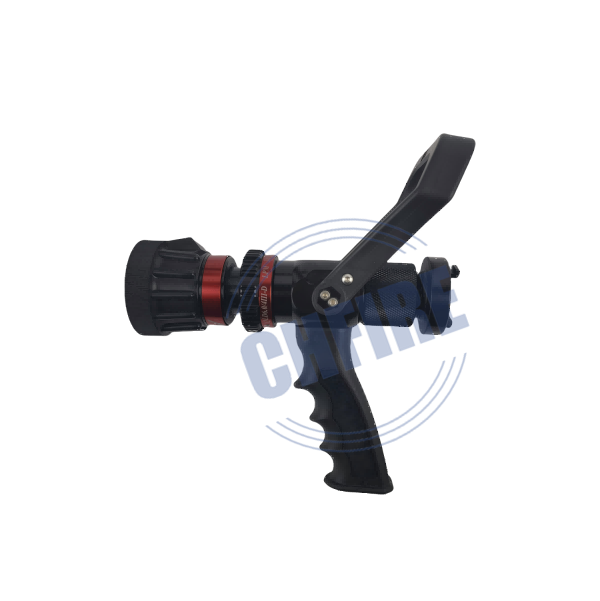

CHFIRE FIREFIGHTING PISTOL GRIP NOZZLE FIRE HOSE NOZZLE FROM CHIAN MANUFACTURER
The multifunctional water gun is a commonly used firefighting equipment in the firefighting field, with the core function of adjustable spraying form. This equipment can realize the rapid switching of various water flow forms such as direct current jet and mist jet through mechanical adjustment device, and can improve the adaptability of fire scene when used in combination. Its small reaction force makes single-person operation more convenient, and it also has the additional function of straightening out the twisted state of the water hose. In actual firefighting, firefighters can flexibly adjust the spraying mode according to the specific conditions such as the type of combustibles and the intensity of combustion in the fire scene, taking into account the needs of long-distance precision spraying and large-area coverage and cooling.
| Model | QLD6.0/4III-D |
| Material of Body | Hard Anodized Aluminum Alloy |
| Material of Ball Valve | ABS(standard), Aluminum Alloy/stainless steel (optional) |
| Material of Valve Handle | ABS(standard), Aluminum Alloy(optional) |
| Material of Pistol Grip | ABS |
| Material of Bumper | Rubber |
| Working Pressure | 7bar |
| Max Working Pressure | 16bar |
| Jetting Range | 25meters @ 7 bar |
| Max Fog Angle | 120° |
| Flow Range | 50 - 100 - 150 - 230LPM- Flush(13-25-40-60GPM) |
| Inlet | 3/4", 1inch, 1.5", available for Storz,NH,INST,Machino |
CHFIRE FIRE FIGHTING EQUIPMENT
The pressure reducing valve utilizes the pilot valve for self-control, does not require other devices and energy, is easy to maintain, has high pressure control accuracy, is less affected by inlet pressure and flow, and has reliable pressure reduction and stabilization.
200X pressure reducing and stabilizing valve consists of main valve, pilot valve, needle valve, ball valve, micro filter and pressure gauge to form hydraulic control takeover system. When in use, after the outlet pressure is adjusted, it can automatically maintain a stable outlet pressure.
500X pressure relief valve is a device used in water supply pipe network systems and urban water supply projects in high-rise buildings and living areas. The device consists of a main valve, pilot valve, needle valve, ball valve, micro filter and pressure gauge to form a hydraulic control takeover system. It uses hydraulic automatic operation and can be used as a pressure relief valve or a pressure holding valve.
The balanced foam proportion mixing device is a relatively advanced foam fire extinguishing device, which is particularly suitable for important fire fighting projects such as petrochemical enterprises, large oil depots, oil terminals and offshore drilling platforms.
A fire hydrant is a connection point through which firefighters can tap into the water supply. it is one of thecomponents of active fire protection. Underground fire hydrants have been used in various situtation such as park,building,etc.
CHFIRE Quick-Attack Foam Tubes are designed to easily and quickly clamp on to various Akron nozzles.
CHFIRE offers POK Fire Hose Reel with high quality and competitive price, which is widely used in fire fighting field.
The WFD Series water flow detectors are compatible with schedule 10 through 40 steel pipe, sizes 2 through 8 inch, and can be mounted in a vertical or horizontal position.
CHFIRE 950LPM(250GPM) Pistol Grip Fire Nozzle is a Multi Purpose Fire Nozzles. With big flow rate of 950 LPM(250GPM), shall be a good help to extinguisher rapidly.
Place of Origin: Fujian, China Brand Name: CHFIRE Model Number:CH22-15 foam inductor Length: 37 cm Material: Iron/aluminum Color: Red/Yellow Connection: NH, Storz, Instant, Gost, Machino (1.5", 2",2.5") Inlet: 2.5" British aluminum joints male Outlet: 2.5" female Branch pipe: 1 inch Mixing Ratio: 3%-6%
