Material: PVC fire hose and mild steel drum
Hose: 25mmx30meters, 33mmx30meters
Working pressure:12bar
Test Pressure: 18bar
Standard:NF EN671-1:2012

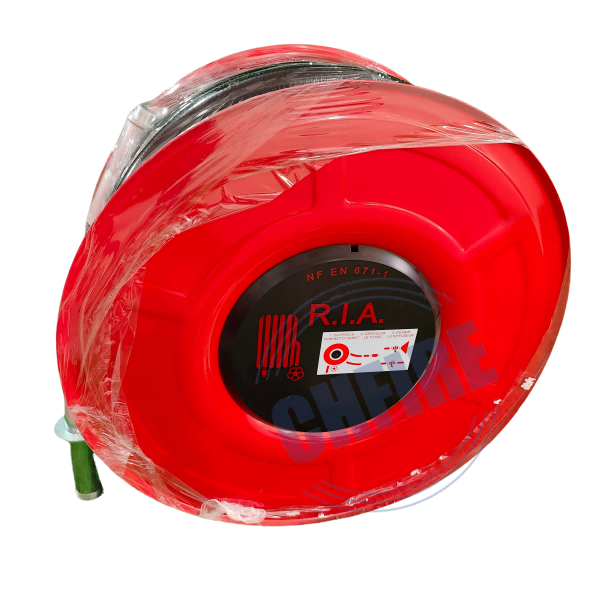

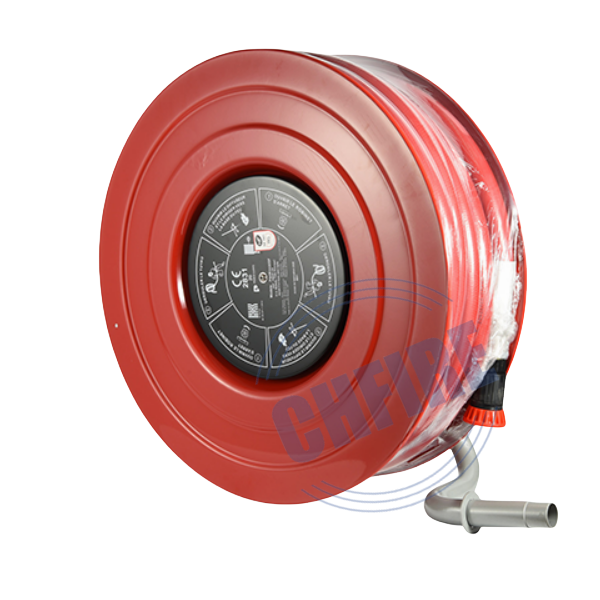

DN25*30M FIRE HOSE REEL
| HOSE | 25mm*30m(EN694, PVC) |
| MINIMUM FLOW RATE | 39L/MIN(at 2 bar) |
| WORKING/TEST PRESSURE | 12bar/18bar |
| DRUM FINISHING | RED(RAL3000) EPOXY POLYESTER ELECTROSTATIC POWDER COATING |
| DESIGN & MANUFACTURE TO | NF EN671-1:2012 |
DN33*30M FIRE HOSE REEL
| HOSE | 33mm*30m(EN694, PVC) |
| MINIMUM FLOW RATE | 128L/MIN(at 4 bar) |
| WORKING/TEST PRESSURE | 7bar/10.5bar |
| DRUM FINISHING | RED(RAL3000) EPOXY POLYESTER ELECTROSTATIC POWDER COATING |
| DESIGN & MANUFACTURE TO | NF EN671-1:2012 |
The Water Wall Curtain Fire Nozzle is an effective fire nozzle, which is widely used in fire fighting in various places. Its main function is to form a solid water curtain by spraying high-pressure water, so as to isolate the fire source and reduce the fire. At the same time, the spray range of this fire nozzle is wide, can cover a large area, and has a very strong fire protection effect.
235 LPM Selectable Flow Fire Hose Nozzle is suitable for Wildland Forestry and mining industries, It has 3 flow rates to choose from 60-130-235LPM.
High pressure anodized aluminum 1inch, 1 1/2 inch, 2inch, 2 1/2inch NH pistol grip ball shut-off valve is lightweight and durable. Features a cast aluminum bale and durable polymer pistol grip that is easily removed. Pistol grip allows for stable and comfortable use. Valve has polymer ball and seating for reduced friction when opening and closing valve under pressure.May be used with any NH or NST threaded nozzle.
CH26-16 High Pressure Nozzle with Trigger Shutoff
Place of Origin: Fujian, China Brand Name: CHFIRE Model Number: CH-22-10 foam bladder tank, PHYM Rate of Flow: 32 L/S, 48 L/S, 80 L/S Inlet and Outlet: DN100 - DN250 Mixing Ratio: 3% -6% Foam Tank Material: Carbon Steel Tank Capacity: 500L and more
The fire nozzle shutoff ball valve are tough, lightweight ball shutoffs with a full-time restricted swivel base to ensure the handle can be positioned for easy operations
