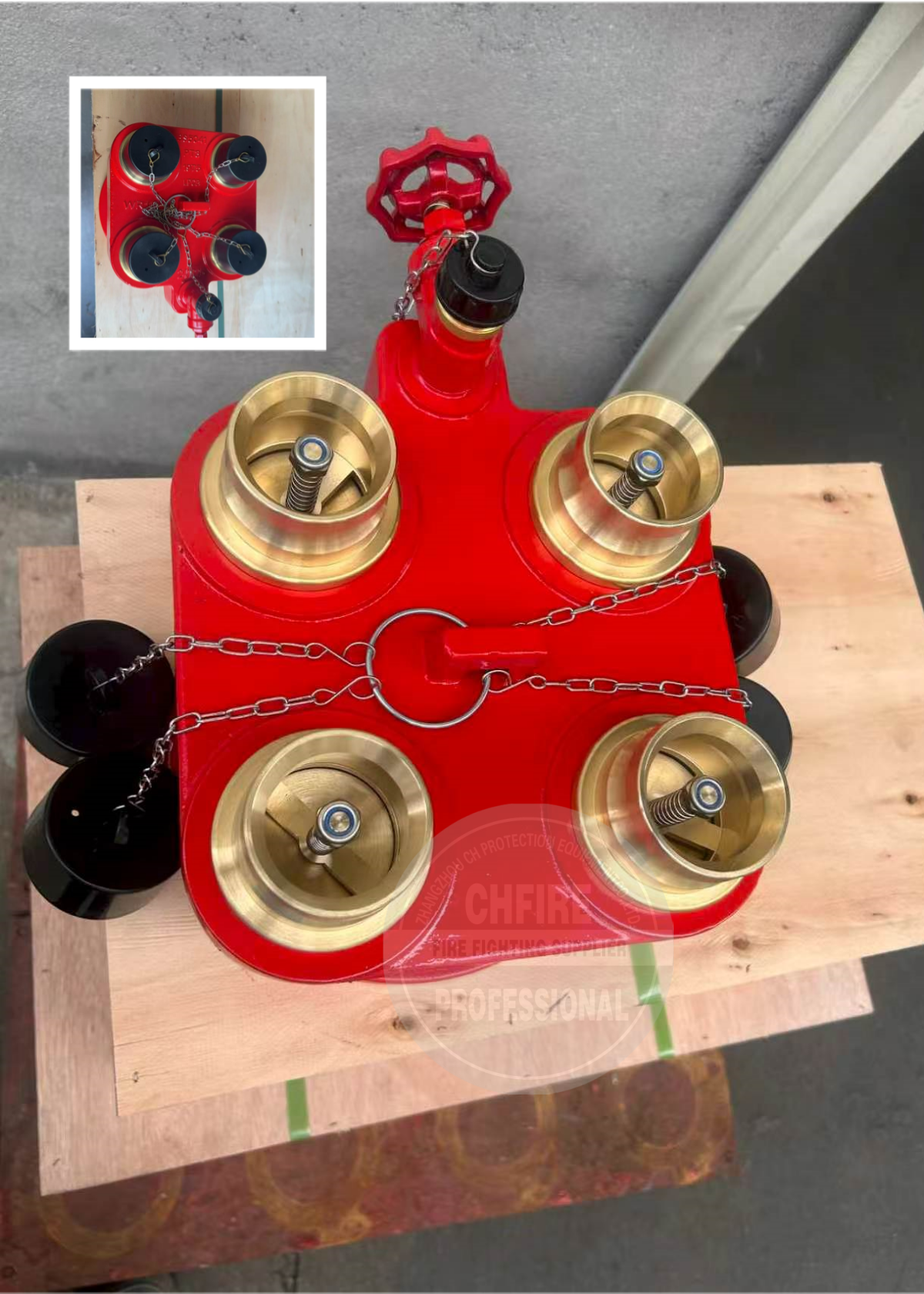

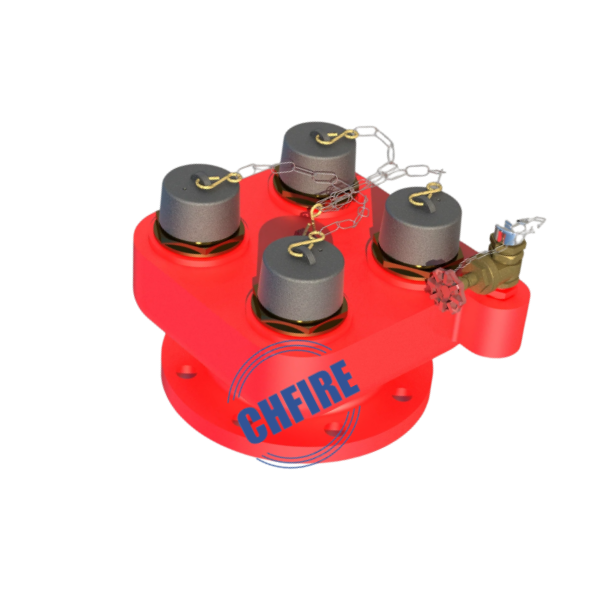

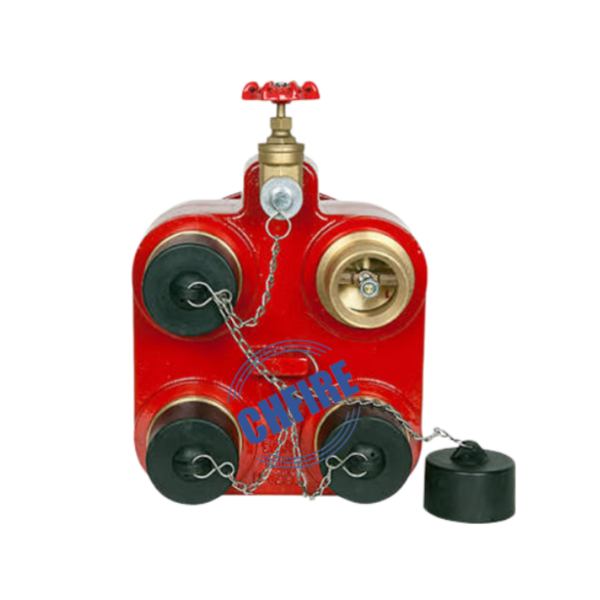

Item Number: CH20-04 4 way breeching inlet
Body Material: Ductile iron as EN-GJS-450-10
Outlet Material: Copper alloy to BS 1400
Outlet Cap: 2 pcs black PE/rubber
Drain Valve: 1" Brass gate valve to BS5154
Drain Valve Cap: 1" Brass as BS CZ121
CHFIRE 4 way breeching inlet are typically installed on building outer wall, connect flange to indoor fire main. They are used to increase the pressure in the building's fire sprinkler systems.
| Model: | 4 Way Breeching Inlet |
| Inlet: | DN100 PN16 Flanged as EN 1092-2 |
| Outlet | 4x2.5"(DN65) British Instananeous |
| Test: | Factory hydro test 30 bar |
| Environment Temperature | 0°C to 38°C |
| Color | RAL3000 epoxy coating |
| Carton Size: | 40x30x25cm/1pc. |
| N.W./G.W.: | 33KG/34KG |
Order Information:
What is your MOQ?
RE: No MOQ is required for in stock items. For orders requiring production, we will discuss the specific MOQ based on the customer's actual demand.
Can you do OEM and ODM?
Yes. OEM and ODM orders are subject to quantity requirements.
What is the payment term?
RE: TT, Western Union available.
CHFIRE 4-way breeching inlet is connected fire trucks to building internal fire piping to supplyment fire water when internal water supply fails.
The fire hose reel cabinet with glass door is suitable for wall-mounted, recessed or surface-mounted installation, widely used in office buildings, hotels, shopping malls, factories, parking lots, residential buildings and public places. It comes with a clear glass door or metal door for easy inspection and emergency operation.
The fire extinguisher holder is a special bracket used to fix and store fire extinguishers. It is mainly used in public places, factories, ships and other scenes where fire-fighting equipment is needed.
The inline foam inductor is a key component in firefighting systems used to prepare foam mixtures. It precisely mixes foam liquid with water in a preset ratio, and the resulting mixture is delivered to the firefighting equipment via a hose line. It operates at the hose connection between the water pump and the foam generator, and is a crucial component of the firefighting product standardization system.
The pressure-reducing valve is adjusted to reduce the inlet pressure to a desired outlet pressure and rely on the energy of the medium itself to keep the outlet pressure automatically stable. From fluid mechanics point of view, pressure reducing valve is a throttling element, local resistance to change that by changing the throttling area, change the kinetic energy of the flow velocity and fluid, different pressure loss, so as to achieve the goal of decompression. Then the control and adjustment system can be adjusted to balance the pressure fluctuation of the valve and the spring force, so that the pressure of the valve remains constant within a certain margin of error. It is widely used in high rise buildings, water pressure of the city water supply pipe, and other occasions, so as to ensure the proper service water pressure and flow of water points in the water supply system.
CHFIRE Brand QLD6.0/8ll Type DSP Fire Hose Gun Nozzle has a small recoil,which can significantly improve the safety of the water gun. Especially in environments with poor stability such as roofs, slopes, and lift trucks, recoil becomes a very dangerous factor. After using the water gun, this kind of danger can be avoided.
60LPM Selectable Flow Fire Hose Nozzle is suitable for Wildland Forestry and mining industries, It has 3 flow rates to choose from 60-130-235LPM.
NF Fire Hose Reel is designed to accommodate breeching inlet.
The CHFIRE Brand Quad Stacked Nozzle Manual Fire Monitor is durable, lightweight construction which is compatible with aerial platform applications. This state-of-the-art equipment has a quad stacked nozzle, which allows it to deliver a focused, powerful stream of water to put out fires quickly and effectively.
Place of Origin:Fujian, China Brand Name: CHFIRE Model Number: CH22-54 fire water monitor Color: Red Body material: Aluminium Alloy Flow Rate: 30LPS/50LPS
