Item Number: CH20-03
Body Material: Ductile iron as EN-GJS-450-10
Outlet Material: Copper alloy to BS 1400
Outlet Cap: 2 pcs black PE/rubber
Drain Valve: 1" Brass gate valve to BS5154
Drain Valve Cap: 1" Brass as BS CZ121

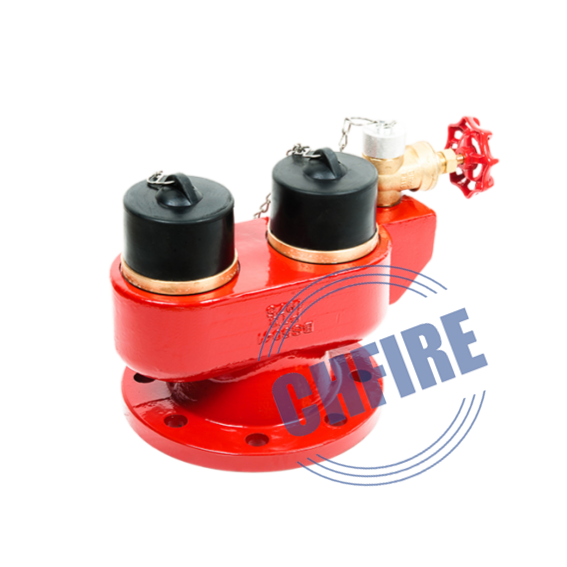

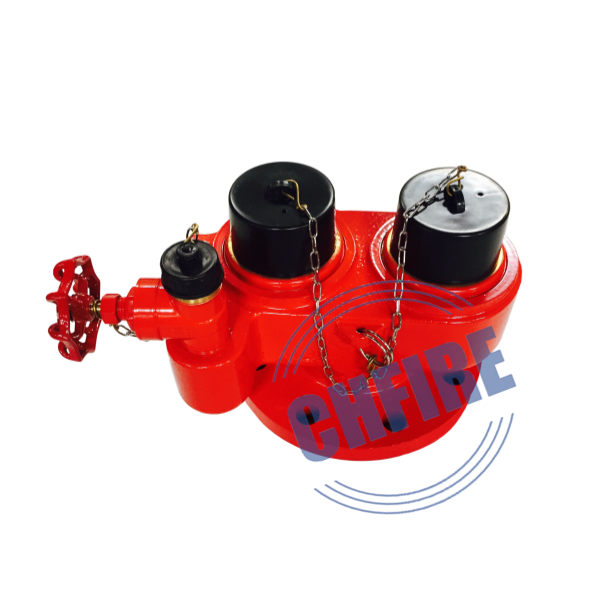

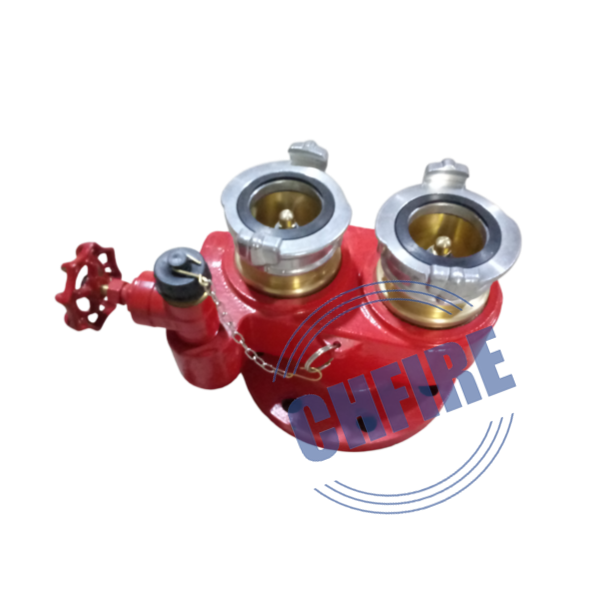

CHFIRE two way breeching inlet are typically installed outside the building to supply water to the fire pump, they are used to increase the pressure in the building's fire sprinkler systems.
| Model: | 2 Way Breeching Inlet |
| Inlet: | DN100 PN16 Flanged as EN 1092-2 |
| Outlet | 2x2.5"(DN65) British Instananeous |
| Test: | Factory hydro test 30 bar |
| Environment Temperature | 0°C to 38°C |
| Color | RAL3000 epoxy coating |

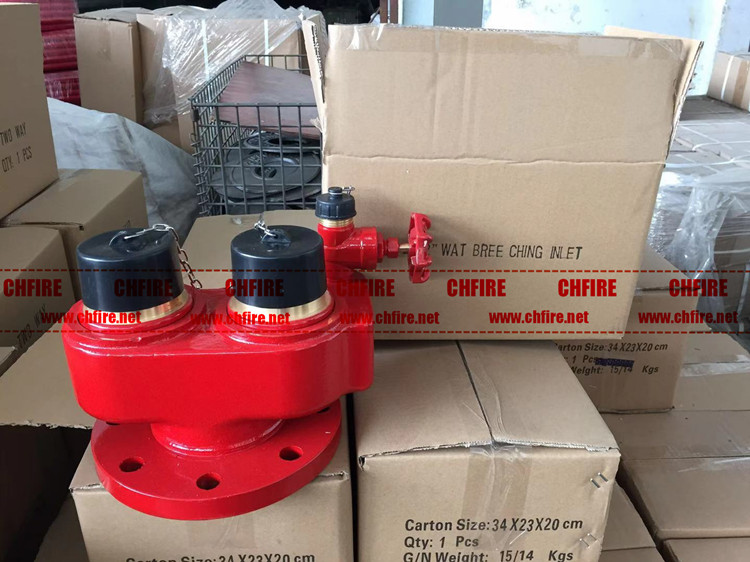

| Carton Size: | 34x23x20cm/1pc. |
| N.W./G.W.: | 14KG/15KG |
Order Information:
What is your MOQ?
RE: No MOQ is required for in stock items. For orders requiring production, we will discuss the specific MOQ based on the customer's actual demand.
Can you do OEM and ODM?
Yes. OEM and ODM orders are subject to quantity requirements.
What is the payment term?
RE: TT, Western Union available.

The fire hose reel cabinet with glass door is suitable for wall-mounted, recessed or surface-mounted installation, widely used in office buildings, hotels, shopping malls, factories, parking lots, residential buildings and public places. It comes with a clear glass door or metal door for easy inspection and emergency operation.
19mm 36m AS1221 Australia Standard Fire Fighting Hose Reel is the Australian/New Zealand standard-compliant fire hose reel system, designed for single-operator use in early-stage fire suppression.
CHFIE Fire Extinguisher Cabinets for 10 lb. extinguishers can be used indoors or out to protect your fire extinguishers and make them noticeable and easy to access. Constructed of high-impact polystyrene and ultraviolet inhibitors, these surface mount FireTech extinguisher cabinets will not rust or fade, regardless of the weather or environment.

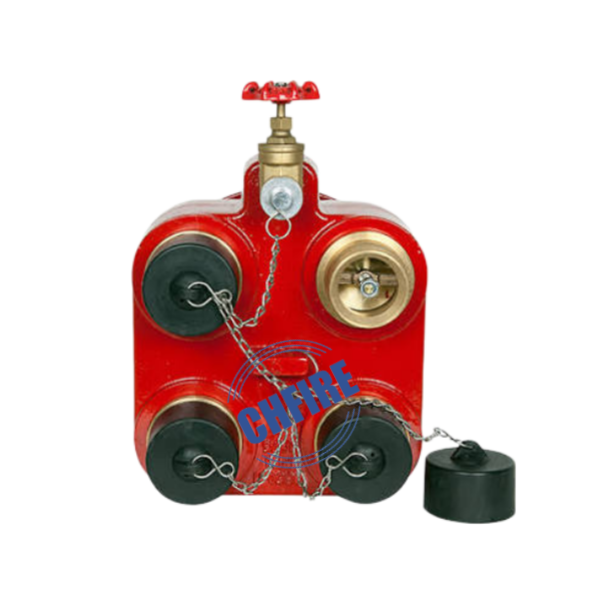

4-way breeching inlet supplies high pressure fire water from fire trucks to building pipe networks. Ductile iron body with four ports and dustproof caps for large commerical premieses.
