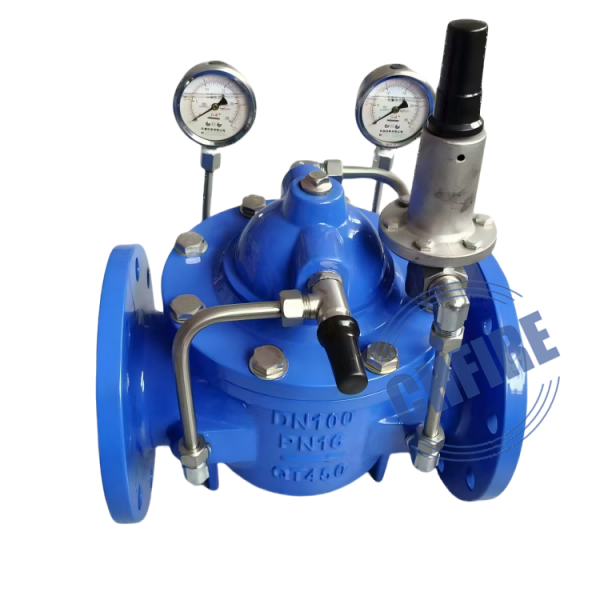

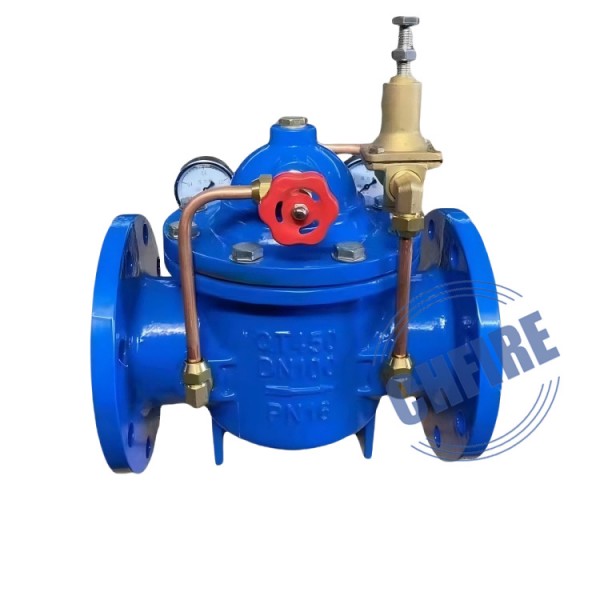

Water Pressure Reducing Valve

Working Pressure: 10/16/25 Bar

Flange End :ANSI150LB/GB Standard /BS Standard;

Steam Material: 2CR13 /Stainless Steel;

Bonnet Material: Ductile Iron ,QT450;

Body Materia: Ductile Iron ,QT450;

Seal Material: Ductile Iron ,QT450,NBR;

Surface Finishing: Epoxy Red or Blue .

DESCRIPTION

Water Pressure Reducing Valve for Fire Hydrant

200X pressure reducing valve is a valve used to adjust the water supply direction in a water supply system where fire water and domestic water are connected in parallel.

When a fire occurs, the firefighting department urgently needs a large amount of water, and the domestic water supply is immediately cut off to ensure sufficient water for firefighting; when the firefighting stops using water and the pressure decreases, the valve automatically opens and is in a normally open state to restore the domestic water supply. This valve eliminates the need for a separate firefighting water supply network, greatly saving construction costs and water consumption.

The valve has high control sensitivity, is safe and reliable, is easy to debug, and has a long service life.



Water Pressure Reducing Valve for Fire Hydrant Specification



Model 200X
Size 2" - 12"
Direction Single Direction
Connection Flange / Groove
Working Pressure 10Bar / 16Bar / 25Bar
Standard ANSI150LB/ GB standard / BS4504
Color Red/ Blue
