Serial Number: CH26-02
Model: QLD6.0/8III
Material of Body: Aluminum Alloy
Connection Size: 1.5”, 2”, 2.5”
Flow Rate: 115-230-360-475LPM(30-60-95-125GPM);
Water Spray Angle: 120°;
Working Pressure: 7bar;
Max Working Pressure: 16bar
Max Flow Range: 32M

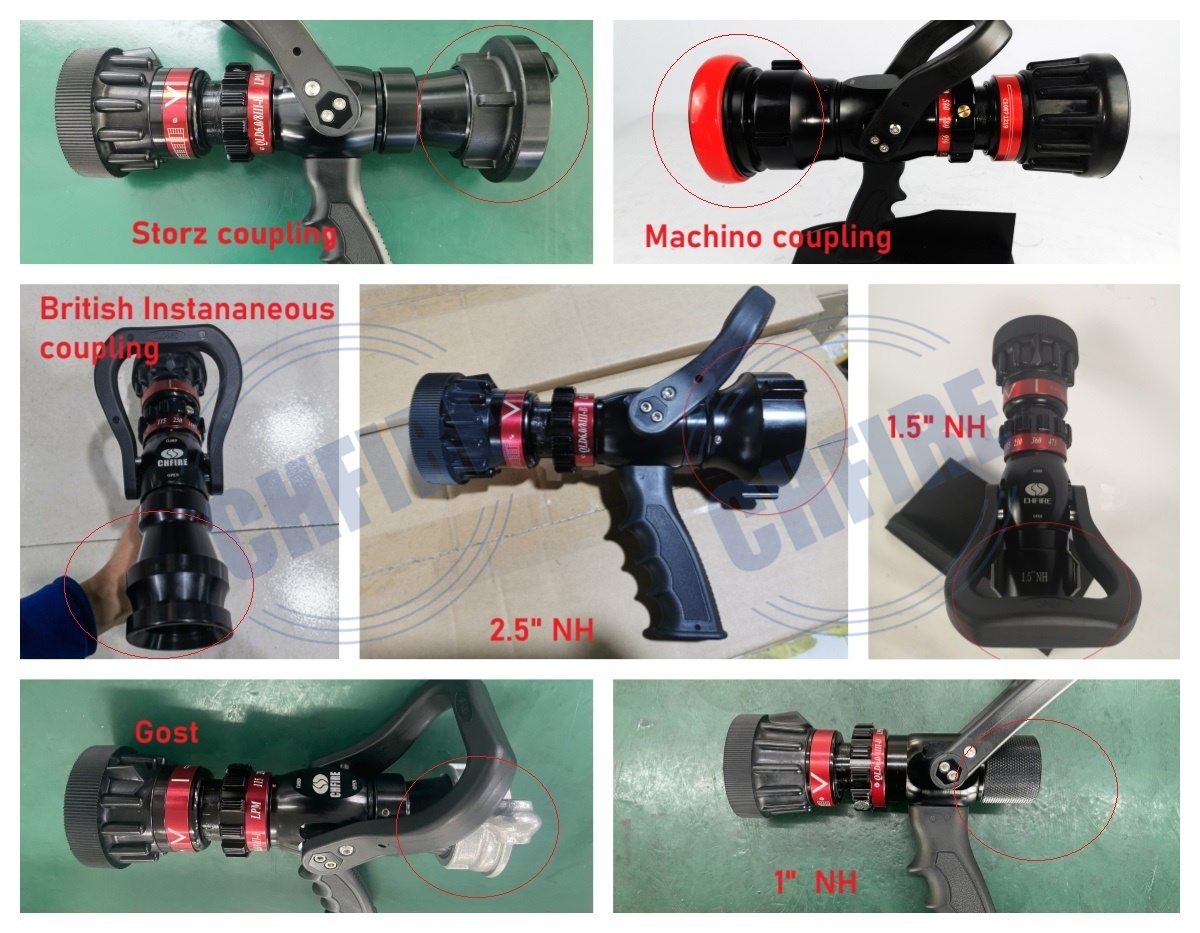

Coupling standard: Storz,NH,NPT,INST,GOST,Machino,etc.
CHFIRE FIREFIGHTING PISTOL GRIP NOZZLE FIRE HOSE NOZZLE FROM CHIAN MANUFACTURER
CHFIRE brand QLD6.0/8III Fire hose nozzle is made of hard anodized aluminium alloy, it can reach 30-60-95-125GPM flow rate when connected with the hose, the jetting pattern can change between straight stream and fog It has the advantages of long range, large water volume, etc.
| Model | QLD6.0/8III |
| Serial Number | CH26-02 |
| Material of Body | Hard Anodized Aluminum Alloy |
| Material of Ball Valve | ABS(standard), Aluminum Alloy/stainless steel (optional) |
| Material of Valve Handle | ABS(standard), Aluminum Alloy(optional) |
| Material of Pistol Grip | ABS |
| Material of Bumper | Rubber |
| Working Pressure | 7bar |
| Max Working Pressure | 16bar |
| Jetting Range | 32meters @ 7 bar |
| Max Fog Angle | 120° |
| Flow Range | 115-230-360-475LPM - Flush (30-60-95-125GPM) |
| Inlet | 1.5", 2", 2.5" available for Storz,NH,INST,Machino |
CHFIRE FIRE FIGHTING EQUIPMENT
Natural rubber lined hoses are widely used in various scenarios where liquids need to be transported, especially in the field of firefighting.
QLD6.0/4lll-D Fire hose nozzle can spray direct streams or mist jets; some can also spray water curtains; and several types of water streams can be interchanged and used in combination, with good maneuverability and good adaptability to fire scenes.
CHFIRE brand QLD6.0/8III Fire hose nozzle is made of hard anodized aluminium alloy, it can reach 30-60-95-125GPM flow rate when connected with the hose, the jetting pattern can change between straight stream and fog It has the advantages of long range, large water volume, etc.
The pressure reducing valve utilizes the pilot valve for self-control, does not require other devices and energy, is easy to maintain, has high pressure control accuracy, is less affected by inlet pressure and flow, and has reliable pressure reduction and stabilization.
CHFIRE Fire hose nozzle is a water-spraying tool for firefighting. When connected with a water hose, it will spray dense and full water flow. It has the advantages of long range and large water volume.
Rising stem soft-sealed gate valve is an industrial valve. The opening and closing part of the soft-sealed gate valve is the gate. The movement direction of the gate is perpendicular to the direction of the fluid. The gate valve can only be fully opened and fully closed, and cannot be adjusted or throttled.
In firefighting, two way inlet dividing water breeching play a vital role. They are not only a key component in firefighting equipment, but also an important guarantee for firefighters to perform their tasks safely and efficiently. By deeply understanding the functions and usage of water distributors, we can better understand their indispensable role in firefighting.
The Quick Attack Foam Tubes are designed to easily and quickly latch on to various CHFIRE® nozzles
CHFIRE fire nozzle shutoff ball valve are tough,lightweight ball shutoffs with a full-timerestricted swivel base to ensure the handlecan be positioned for easy operations
