Serial Number: CH26-05
Model: QLD6.0/4III-D
Flow Rate: 50-100-150-230LPM(13-25-40-60GPM);
Water Spray Angle: 180°;
Working Pressure: 7bar;
Max Working Pressure: 16bar
Max Flow Range: 25M
Coupling standard: Storz,NH,NPT,INST,GOST,Machino,etc.

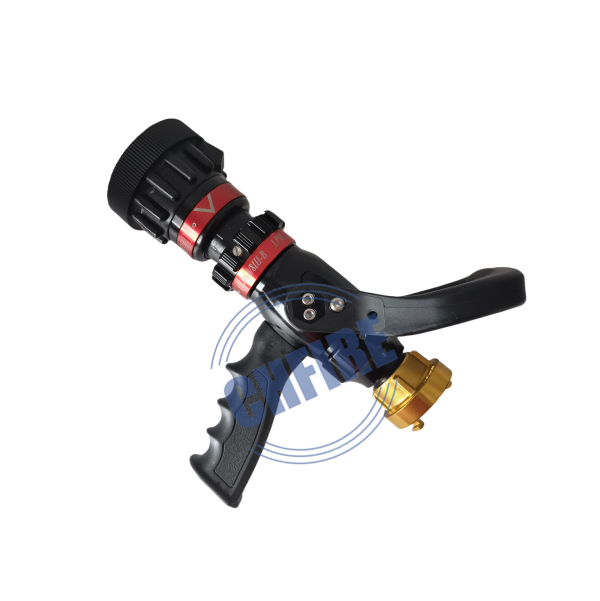

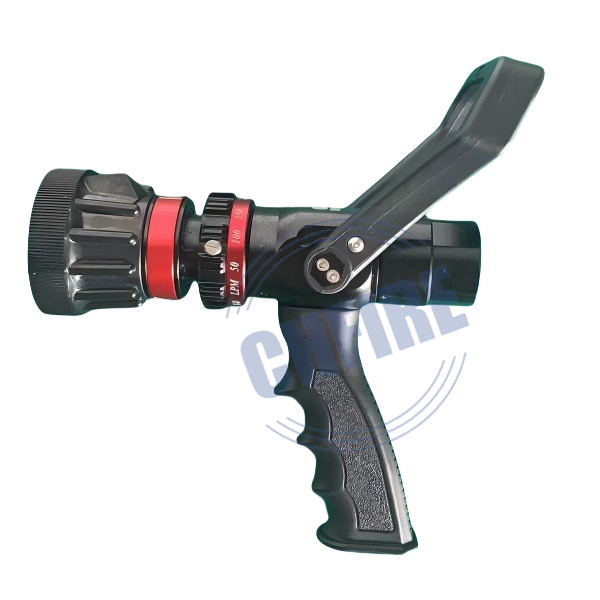

CHFIRE FIREFIGHTING PISTOL GRIP NOZZLE FIRE HOSE NOZZLE FROM CHIAN MANUFACTURER
The multifunctional water gun is a commonly used firefighting equipment in the firefighting field, with the core function of adjustable spraying form. This equipment can realize the rapid switching of various water flow forms such as direct current jet and mist jet through mechanical adjustment device, and can improve the adaptability of fire scene when used in combination. Its small reaction force makes single-person operation more convenient, and it also has the additional function of straightening out the twisted state of the water hose. In actual firefighting, firefighters can flexibly adjust the spraying mode according to the specific conditions such as the type of combustibles and the intensity of combustion in the fire scene, taking into account the needs of long-distance precision spraying and large-area coverage and cooling.
| Model | QLD6.0/4III-D |
| Material of Body | Hard Anodized Aluminum Alloy |
| Material of Ball Valve | ABS(standard), Aluminum Alloy/stainless steel (optional) |
| Material of Valve Handle | ABS(standard), Aluminum Alloy(optional) |
| Material of Pistol Grip | ABS |
| Material of Bumper | Rubber |
| Working Pressure | 7bar |
| Max Working Pressure | 16bar |
| Jetting Range | 25meters @ 7 bar |
| Max Fog Angle | 120° |
| Flow Range | 50 - 100 - 150 - 230LPM- Flush(13-25-40-60GPM) |
| Inlet | 3/4", 1inch, 1.5", available for Storz,NH,INST,Machino |
CHFIRE FIRE FIGHTING EQUIPMENT
QLD6.0/4III-D firefithing nozzle can spray direct streams or mist jets; some can also spray water curtains; and several types of water streams can be interchanged and used in combination, with good maneuverability and good adaptability to fire scenes.
CHFIRE Brand PSKD series electric fire water monitors are mainly composed of control systems (wireless remote control, wired long-distance electric control), electric monitor bodies, fire water supply systems, etc.
CHFIRE 200X pressure reducing valve is a valve used to adjust the water supply direction in a water supply system where fire water and domestic water are connected in parallel.
In firefighting, two way inlet dividing water breeching play a vital role. They are not only a key component in firefighting equipment, but also an important guarantee for firefighters to perform their tasks safely and efficiently. By deeply understanding the functions and usage of water distributors, we can better understand their indispensable role in firefighting.
500X pressure relief and pressure sustaining valve is mainly used to adjust the medium flow, pressure, temperature, liquid level and other process parameters in the field of industrial automation process control. According to the control signal in the automation system, the valve opening is automatically adjusted to achieve the adjustment of medium flow, pressure, temperature and liquid level.
The CHFIRE brand BS750 Fire hydrant is normally used by the fire service, it is made of ductile iron and brass according to BS 750.
French Type Fire Hose Reel is designed by NF EN671-1:2012 standard, it is hot selling in French Marketing.
The UL-FM water flow indicator is a component of the automatic sprinkler fire extinguishing system, which is generally installed on the water distribution main or the beginning of the water distribution pipe on the system network side. When the blade senses the water flow signal, it will convert the water flow signal into an electrical signal. After receiving the signal, the automatic alarm controller will issue a command pneumatic alarm system or start electrical equipment such as fire pumps, and can display the firearea. This product is suitable for wet, dryand pre-action automatic fire extinguishing systems.
The CHFIRE Brand Quad Stacked Nozzle Manual Fire Monitor is durable, lightweight construction which is compatible with aerial platform applications. This state-of-the-art equipment has a quad stacked nozzle, which allows it to deliver a focused, powerful stream of water to put out fires quickly and effectively.
High pressure anodized aluminum 1inch, 1 1/2 inch, 2inch, 2 1/2inch NH pistol grip ball shut-off valve is lightweight and durable. Features a cast aluminum bale and durable polymer pistol grip that is easily removed. Pistol grip allows for stable and comfortable use. Valve has polymer ball and seating for reduced friction when opening and closing valve under pressure.May be used with any NH or NST threaded nozzle.
Place of Origin Fujian, China Brand Name: CHFIRE Model Number: CH22-21 fire water monitor Color: Red Body material: Aluminium Alloy Flow Rate: 40LPS/60LPS
