Size: 2inch -12 inch
Working pressure: 175psi,300psi
Flange standard: ASME-B16.1 Class125
Temperature range: 0-80℃

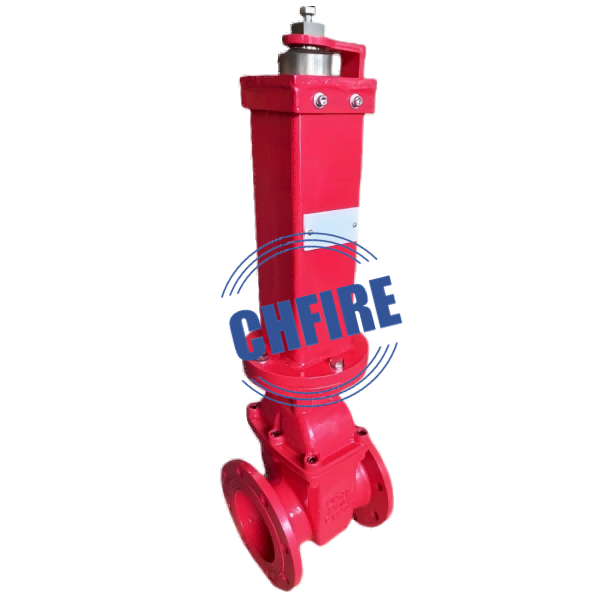

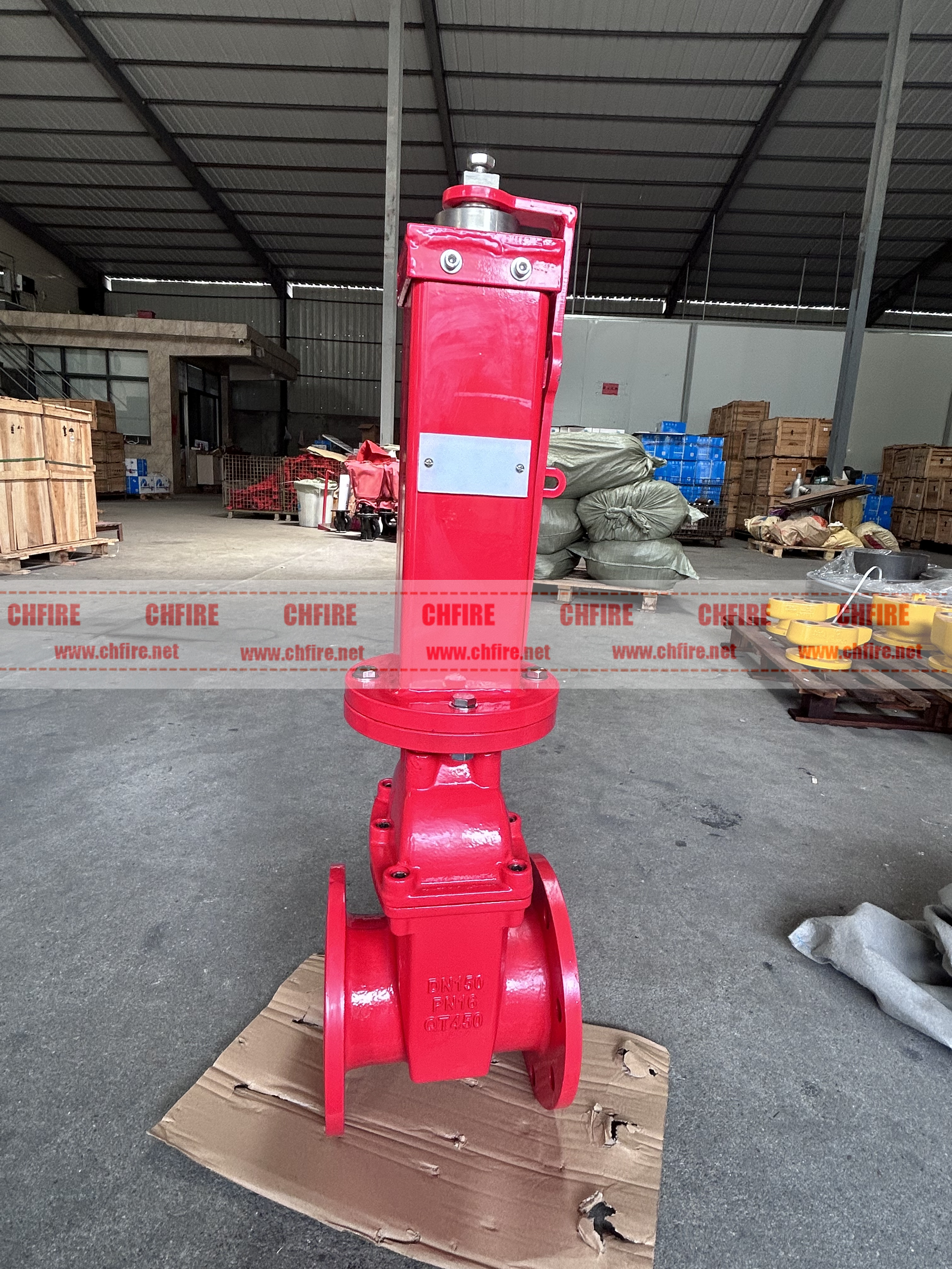

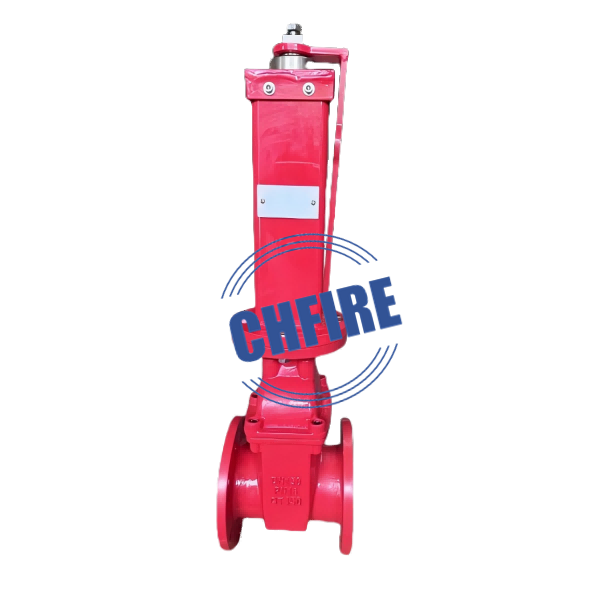

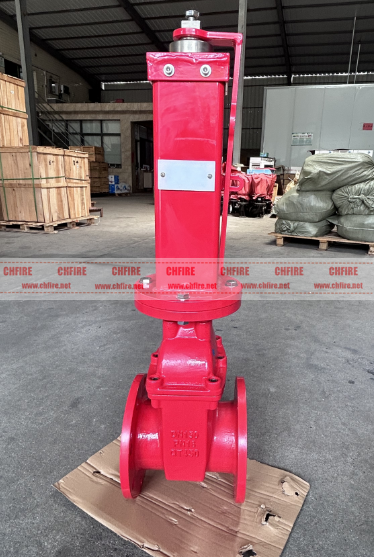

POST INDICATOR VALVE SPECIFICATION:
| Name of Parts | Material |
| Body | Ductile Iron |
| Wedge | Ductile Iron |
| Cover | Ductile Iron |
| Stem | Bronze |
| Stem Nut | SS431 or SS304, SS316,bronze |
| Bonnet | Ductile Iron |
| Bonnet Gasket | EPDM |
| Sealing Ring | EPDM |
| Indicator Post Flange | Ductile Iron |
| Sliding disc | Bronze |
| Screw |
Carbon steel with hot galvanization
|
| O-rings | EPDM |
| Extension Rod | Carbon Steel |
| Telescoping Barrel | Carbon Steel |
| Plain | Carbon Steel |
| Wrench Nut | Ductile Iron |
Fire Hydrant Protection System is designed to fight fire of huge proportions, in all classes of risks and it is an active fire protection measure.
CHFIRE offers POK Fire Hose Reel with high quality and competitive price, which is widely used in fire fighting field.
The WFD Series water flow detectors are compatible with schedule 10 through 40 steel pipe, sizes 2 through 8 inch, and can be mounted in a vertical or horizontal position.
The water flow indicator is a component of the automatic sprinkler fire extinguishing system, which is generally installed on the water distribution main or the beginning of the water distribution pipe on the system network side. When the blade senses the water flow signal, it will convert the water flow signal into an electrical signal. After receiving the signal, the automatic alarm controller will issue a command pneumatic alarm system or start electrical equipment such as fire pumps, and can display the fire area. This product is suitable for wet, dry and pre-action automatic fire extinguishing systems.
The CHFIRE brand manual triller fire water monitor is durable, lightweight construction which is compatible with aerial platform applications. This state-of-the-art equipment has a quad stacked nozzle, which allows it to deliver a focused, powerful stream of water to put out fires quickly and effectively.
60LPM Selectable Flow Fire Hose Nozzle is suitable for Wildland Forestry and mining industries, It has 3 flow rates to choose from 60-130-235LPM.
CHFIRE fire nozzle shutoff ball valve are tough,lightweight ball shutoffs with a full-timerestricted swivel base to ensure the handlecan be positioned for easy operations
Place of Origin:Fujian, China Brand Name: CHFIRE Model Number: CH22-17 foam generator Type: PCL/PC Working pressure: 0.3~0.6 MPa Nominal pressure: 0.5Mpa Rated flow: 4/8/16/24 L/S Outlet: 4"
