Flow Rate: 500 LPM,1000 LPM;
Water Spray Angle: 180°;
Water channels for good performance;
Coupling standard: Storz,NH,NPT,INST,GOST,Machino,etc.

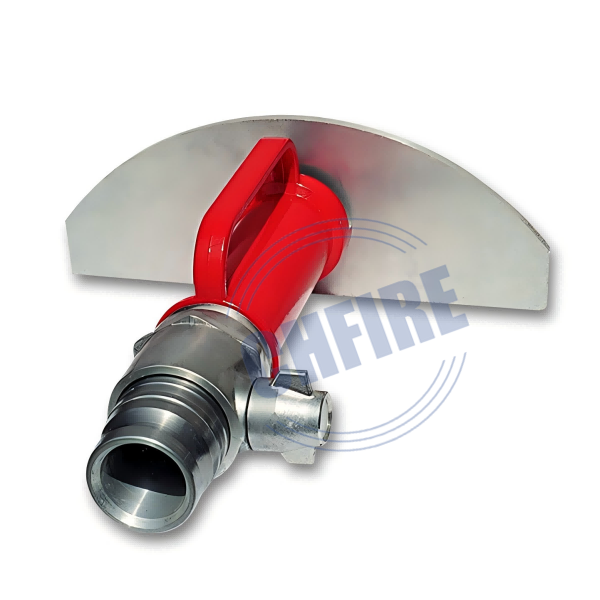

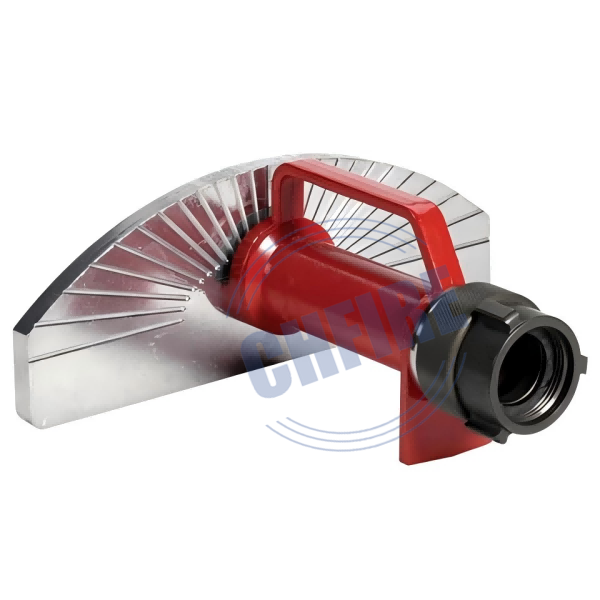

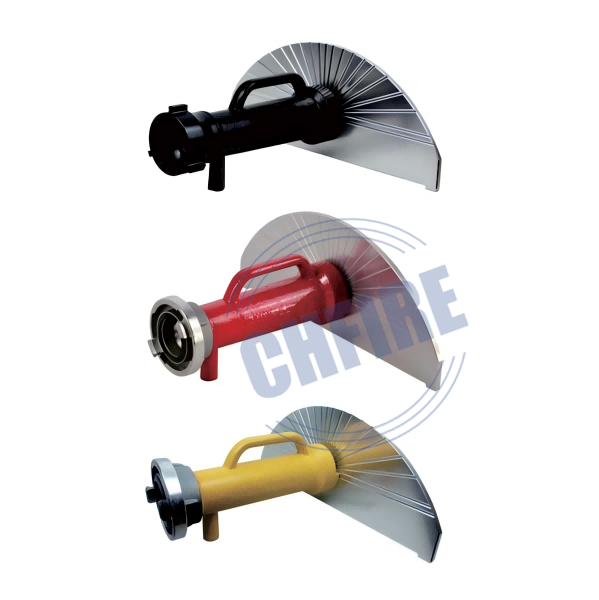

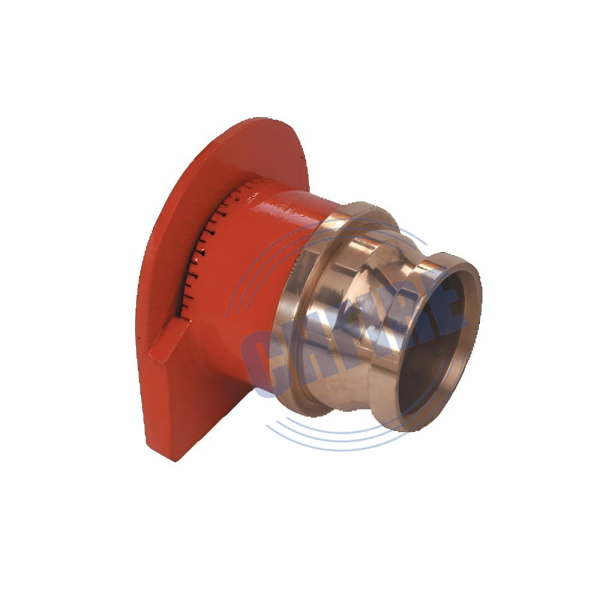

The water shield hose nozzle for protection is an effective fire nozzle, which is widely used in fire fighting in various places. Its main function is to form a solid water curtain by spraying high-pressure water, so as to isolate the fire source and reduce the fire. At the same time, the spray range of this fire nozzle is wide, can cover a large area, and has a very strong fire protection effect.
| Model | Material | Inlet Size | working pressure | water wall size | water wall angle |
| #CH26-03A1 | Hard Anodized Aluminum Alloy | 2" | 7bar | 24m wight,7m high | 180° |
| #CH26-03A2 | Hard Anodized Aluminum Alloy | 2.5" | 7bar | 26m wight,8m high | 180° |
| #CH26-03A3 | Hard Anodized Aluminum Alloy | 2.5" | 7bar | 27m wight,9m high | 180° |
The water flow indicator is a component of the automatic sprinkler fire extinguishing system, which is generally installed on the water distribution main or the beginning of the water distribution pipe on the system network side. When the blade senses the water flow signal, it will convert the water flow signal into an electrical signal. After receiving the signal, the automatic alarm controller will issue a command pneumatic alarm system or start electrical equipment such as fire pumps, and can display the fire area. This product is suitable for wet, dry and pre-action automatic fire extinguishing systems.
125GPM Pistol Grip Fire Nozzle is designed for use with low pressure mainline hoses providing exceptional performance and long-term value.
CHFIRE fire nozzle shutoff ball valve are tough,lightweight ball shutoffs with a full-timerestricted swivel base to ensure the handlecan be positioned for easy operations
CH26-16 High Pressure Nozzle with Trigger Shutoff
Place of Origin: Fujian, China Brand Name: CHFIRE Model Number: CH-22-10 foam bladder tank, PHYM Rate of Flow: 32 L/S, 48 L/S, 80 L/S Inlet and Outlet: DN100 - DN250 Mixing Ratio: 3% -6% Foam Tank Material: Carbon Steel Tank Capacity: 500L and more
The cabinet comes with a key lock to give it added protection. -Stronge durable metal construction -Powder coated finish -Unique hinged-base opening mechanism -Identification label supplied -Highly visible colouring -Lockable door -Made of steel,hard to penetrate
