Place of Origin: Fujian, China
Brand Name: CHFIRE

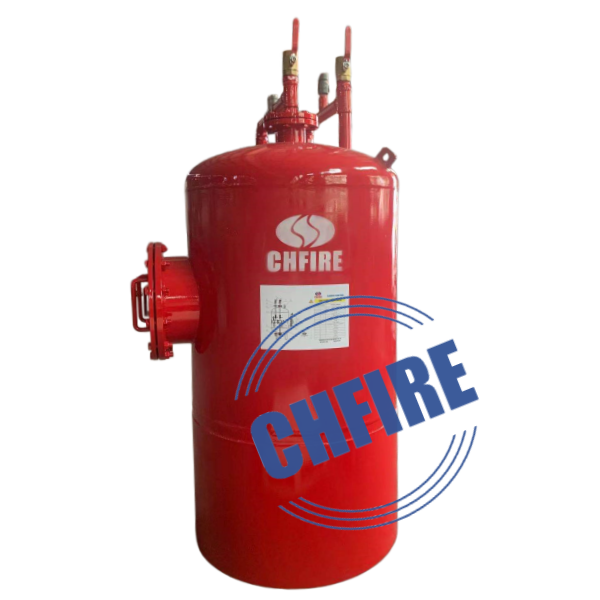

Model Number: CH-22-10 foam bladder tank
Rate of Flow: 32 L/S, 48 L/S, 64 L/S
Inlet and Outlet: DN100 - DN250
Mixing Ratio: 3% -6%
Foam Tank Material: Carbon Steel
Tank Capacity: 1000L and more
Type: Horizontal or Vertical
Working Pressure: 0.6-1.2 Mpa
Foam Bladder Tank Accessory:Foam tank, bladder,valves, pipelines
Material-proportional: Aluminium alloy

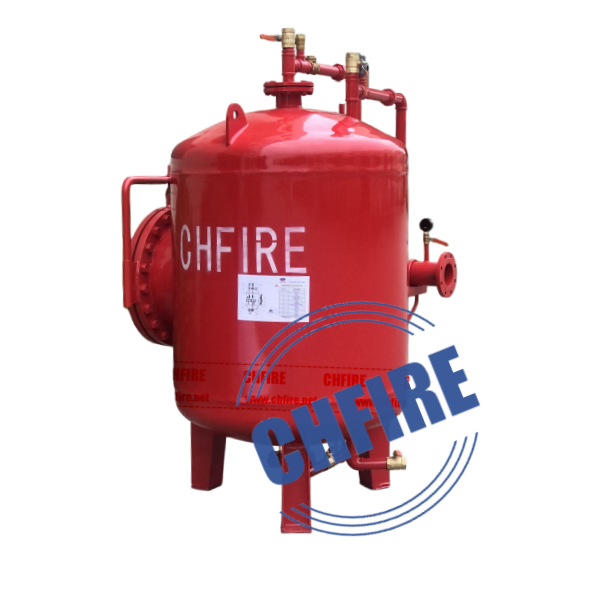

3000L Vertical Fire Foam Baldder Tank for Fireighting Specification
| Component | Standard Specification |
| Tank Shell | Carbon Steel Q235B |
| Inner Bladder | EPDM Rubber |
| Working Pressure | Rated Working Pressure 0.6Mpa |
| Test Pressure | Hydraulic Test Pressure: 1.25xrated working pressure |
| Rate Flow | 32LPS,48LPS,64LPS |
| Media | Water, Foam Concentrate 3% or 6% |

The foam bladder tank utilizes a bladder to physically separate the water from the foam concentrate throughout the process; unused concentrate is not diluted by the water and can be retained for future use.
Two way breeching inlet is fire service connection equipment, used to connect fire pump truck pipeline with building internal fire pipe network, two outlets design for simultaneous water supply.
Hand-push wheeled construction for convenient relocation and rapid firefighting setup.Ideal for factory, warehouse and commercial premises fire protection.
Our Transparent Fire Extinguisher Box seamlessly integrates robust functionality with sophisticated design. Constructed from ultra-tough polycarbonate, it offers unparalleled clarity and impact resistance, ensuring your safety equipment is always protected yet effortlessly visible.
CHFIRE floor type manual fire hose reel with hand crank is simple to operate, it is widely use in building, hotel, shopping mall.
The stainless steel manual fire monitor is a firefighting device made of stainless steel. It is primarily used for long-range fire suppression and features corrosion resistance and high strength. Made of stainless steel, it offers high strength and corrosion resistance, making it suitable for harsh environments. Manually operated via a worm gear or handle, it allows for horizontal slewing and pitching, with reliable locking.
Stainless steel fire water monitor is a long-distance fire extinguishing equipment with stainless steel as the main material. It has the characteristics of strong corrosion resistance, stable structure and long range. It is widely used in industrial fire fighting, municipal fire fighting and fire fighting in special places.
Balanced Pressure Foam Proportioning System Foam Skids is widely used in fire fighting system because of its versatility and accuracy. It functions by maintaining an equal pressure in the foam concentrate and water inlets to the proportioner. The balancing ability allows the proportioner to be used over a wide range of flows and pressures. The system will also respond quickly and accurately to changes in the water inlet pressures and flow rates. It is a skid mounted fixed units which are capable of providing foam protection to all types of hazards on land, and it is also excellent for various marine applications. Skid mounting allows the complete proportioning system to be assembled on a common base ready for installation into the customera s water supply.
Fire extinguisher plastic stand are mainly used to fix and store fire extinguishers and are commonly found in shops, offices and other places.
The inline foam inductor is a key component in firefighting systems used to prepare foam mixtures. It precisely mixes foam liquid with water in a preset ratio, and the resulting mixture is delivered to the firefighting equipment via a hose line. It operates at the hose connection between the water pump and the foam generator, and is a crucial component of the firefighting product standardization system.
The fire three-way water distributor is a device specially used in fire protection systems. Its main function is to reasonably distribute and control the water flow to ensure that water can be quickly and effectively delivered to various parts that need fire extinguishing when a fire occurs.
