Flow Rate: 500 LPM,1000 LPM;
Water Spray Angle: 180°;
Water channels for good performance;
Coupling standard: Storz,NH,NPT,INST,GOST,Machino,etc.

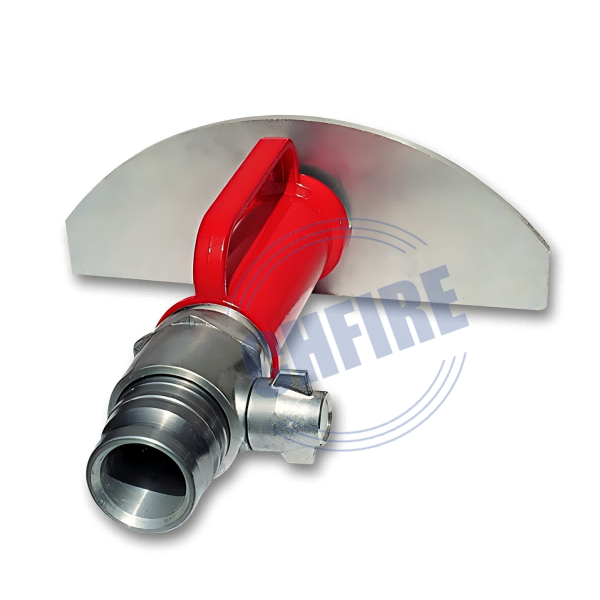

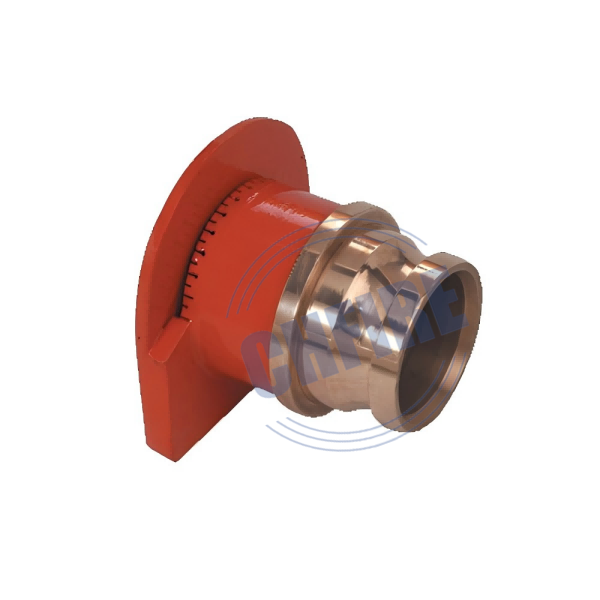

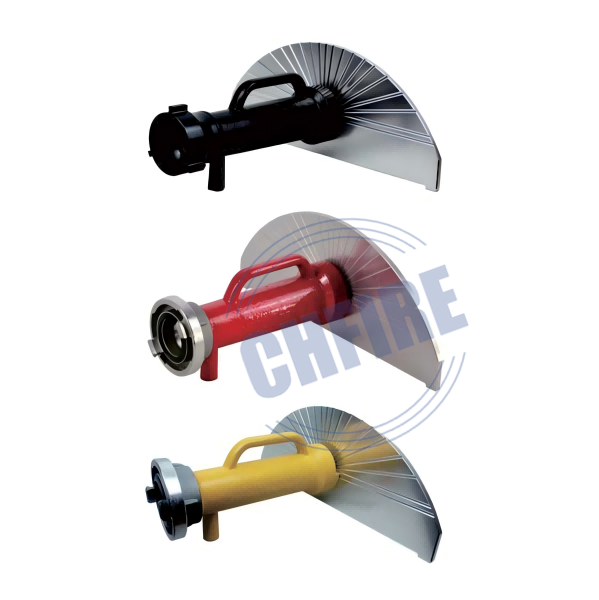

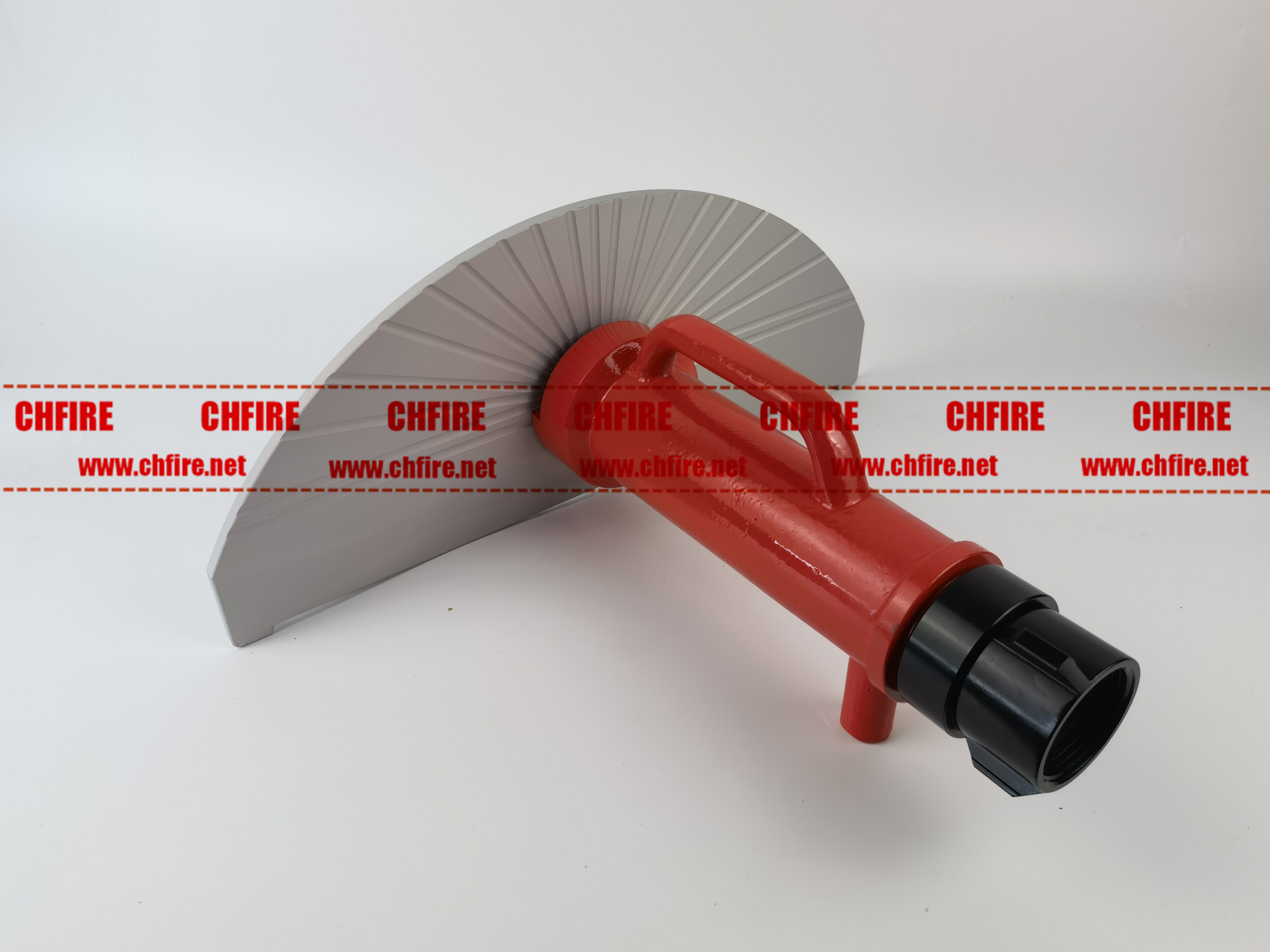

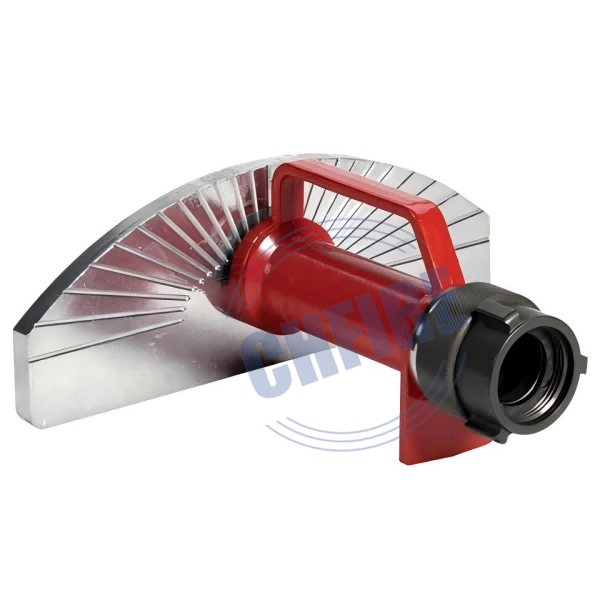

The Fire Fog Nozzle Types For Fire Fighting is an effective fire nozzle, which is widely used in fire fighting in various places. Its main function is to form a solid water curtain by spraying high-pressure water, so as to isolate the fire source and reduce the fire. At the same time, the spray range of this fire nozzle is wide, can cover a large area, and has a very strong fire protection effect.
| Model | Material | Inlet Size | working pressure | water wall size | water wall angle |
| #CH26-03A1 | Hard Anodized Aluminum Alloy | 2" | 7bar | 24m wight,7m high | 180° |
| #CH26-03A2 | Hard Anodized Aluminum Alloy | 2.5" | 7bar | 26m wight,8m high | 180° |
| #CH26-03A3 | Hard Anodized Aluminum Alloy | 2.5" | 7bar | 27m wight,9m high | 180° |
