Material: PVC fire hose and mild steel drum
Hose: 25mmx30meters, 33mmx30meters
Working pressure:12bar
Test Pressure: 18bar
Standard:NF EN671-1:2012

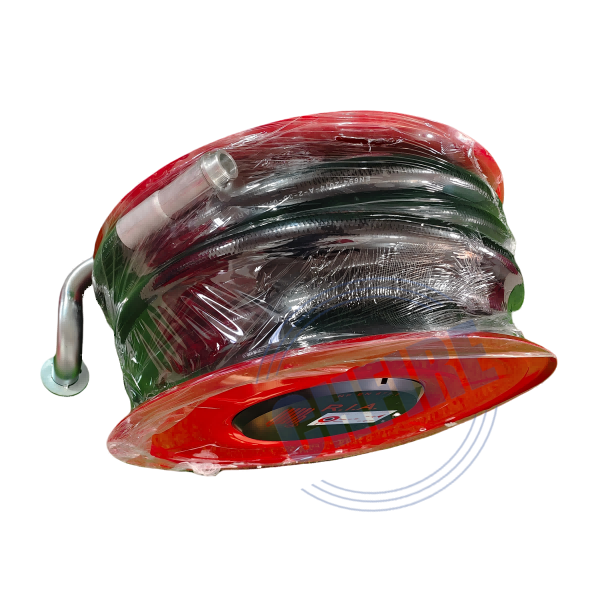

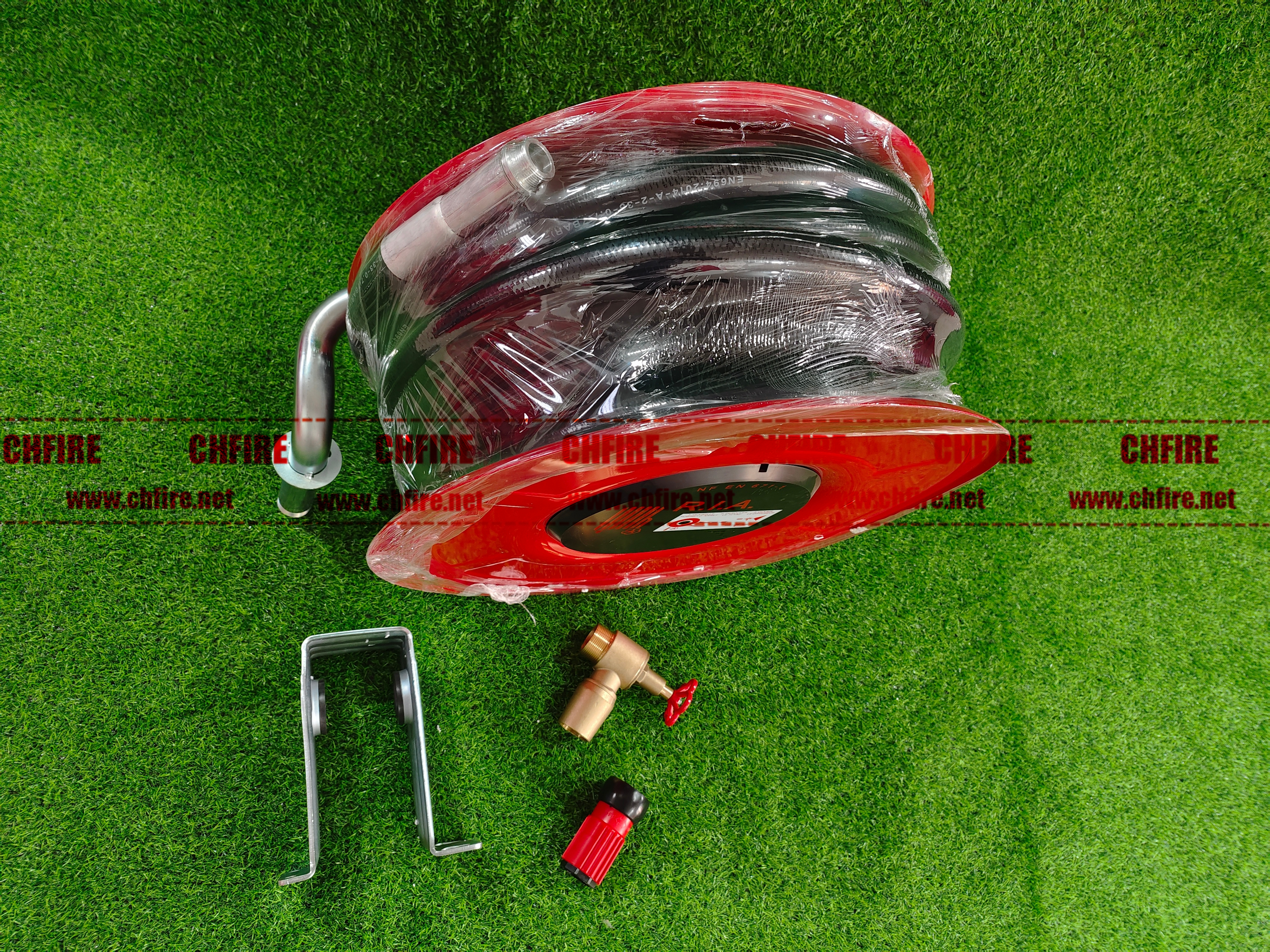

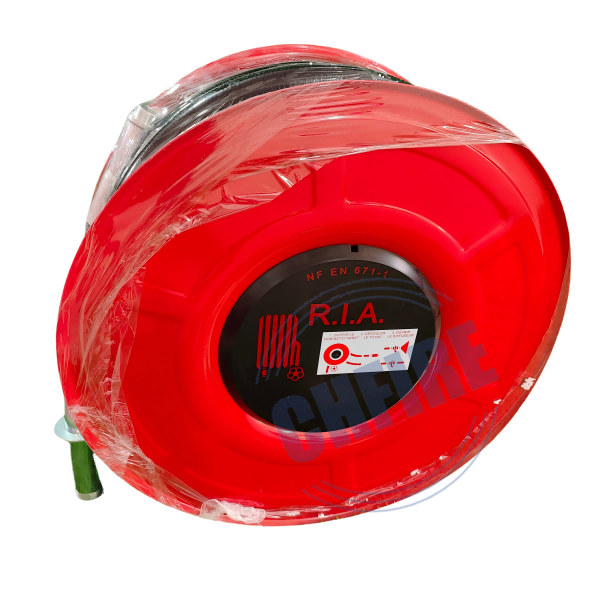

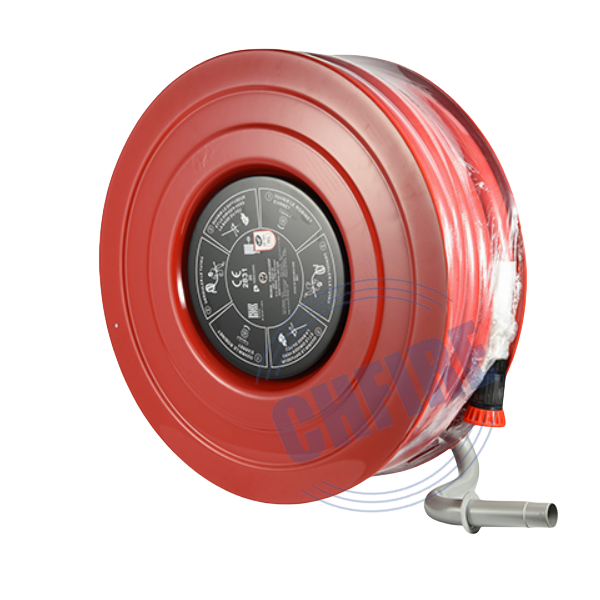

DN25*30M FIRE HOSE REEL
| HOSE | 25mm*30m(EN694, PVC) |
| MINIMUM FLOW RATE | 39L/MIN(at 2 bar) |
| WORKING/TEST PRESSURE | 12bar/18bar |
| DRUM FINISHING | RED(RAL3000) EPOXY POLYESTER ELECTROSTATIC POWDER COATING |
| DESIGN & MANUFACTURE TO | NF EN671-1:2012 |
DN33*30M FIRE HOSE REEL
| HOSE | 33mm*30m(EN694, PVC) |
| MINIMUM FLOW RATE | 128L/MIN(at 4 bar) |
| WORKING/TEST PRESSURE | 7bar/10.5bar |
| DRUM FINISHING | RED(RAL3000) EPOXY POLYESTER ELECTROSTATIC POWDER COATING |
| DESIGN & MANUFACTURE TO | NF EN671-1:2012 |
The Water Wall Curtain Fire Nozzle is an effective fire nozzle, which is widely used in fire fighting in various places. Its main function is to form a solid water curtain by spraying high-pressure water, so as to isolate the fire source and reduce the fire. At the same time, the spray range of this fire nozzle is wide, can cover a large area, and has a very strong fire protection effect.
The WFD Series water flow detectors are compatible with schedule 10 through 40 steel pipe, sizes 2 through 8 inch, and can be mounted in a vertical or horizontal position.
The CHFIRE brand manual triller fire water monitor is durable, lightweight construction which is compatible with aerial platform applications. This state-of-the-art equipment has a quad stacked nozzle, which allows it to deliver a focused, powerful stream of water to put out fires quickly and effectively.
CHFIRE 950LPM(250GPM) Pistol Grip Fire Nozzle is a Multi Purpose Fire Nozzles. With big flow rate of 950 LPM(250GPM), shall be a good help to extinguisher rapidly.
125GPM Pistol Grip Fire Nozzle is designed for use with low pressure mainline hoses providing exceptional performance and long-term value.
The fire nozzle shutoff ball valve are tough, lightweight ball shutoffs with a full-time restricted swivel base to ensure the handle can be positioned for easy operations
