Place of Origin: Fujian, China
Brand Name: CHFIRE
Model Number: CH-22-10 foam bladder tank
Rate of Flow: 32 L/S, 48 L/S, 64 L/S
Inlet and Outlet: DN100 - DN250
Mixing Ratio: 3% -6%
Foam Tank Material: Carbon Steel
Tank Capacity: 1000L and more
Type: Horizontal or Vertical
Working Pressure: 0.6-1.2 Mpa
Foam Bladder Tank Accessory:Foam tank, bladder,valves, pipelines
Material-proportional: Aluminium alloy

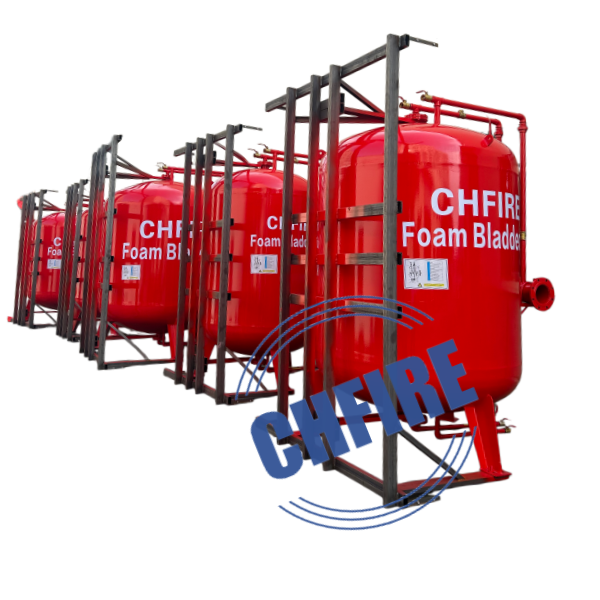

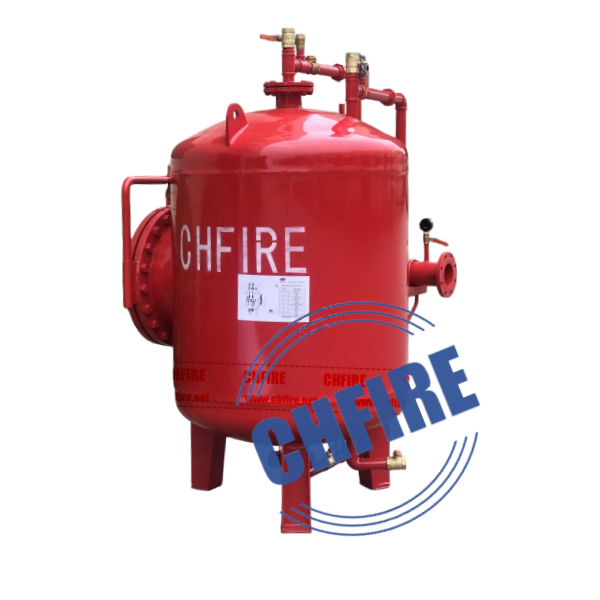

Vertical Fire Bladder Foam Tank Specification
| Component | Standard Specification |
| Tank Shell | Carbon Steel Q235B |
| Inner Bladder | EPDM Rubber |
| Working Pressure | Rated Working Pressure 0.6Mpa |
| Test Pressure | Hydraulic Test Pressure: 1.25xrated working pressure |
| Rate Flow | 32LPS,48LPS,64LPS |
| Media | Water, Foam Concentrate 3% or 6% |
