Type: manual swing type
Material: PVC fire hose and mild steel drum
Hose: 19mmx30meters, 25mmx30meters
Inlet Valve Type: Ball Valve,Gate Valve,BSP,Thread(Standard)
Working pressure:12bar
Test Pressure: 18bar
Drum Surface Finishing: RAL3000 Epoxy Red.

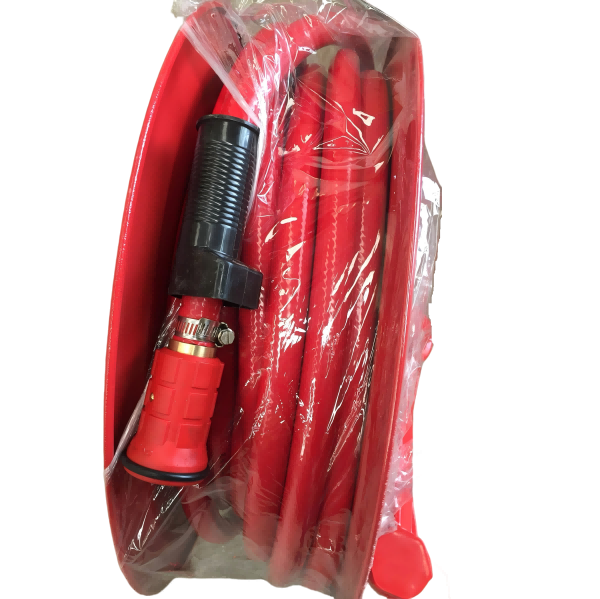

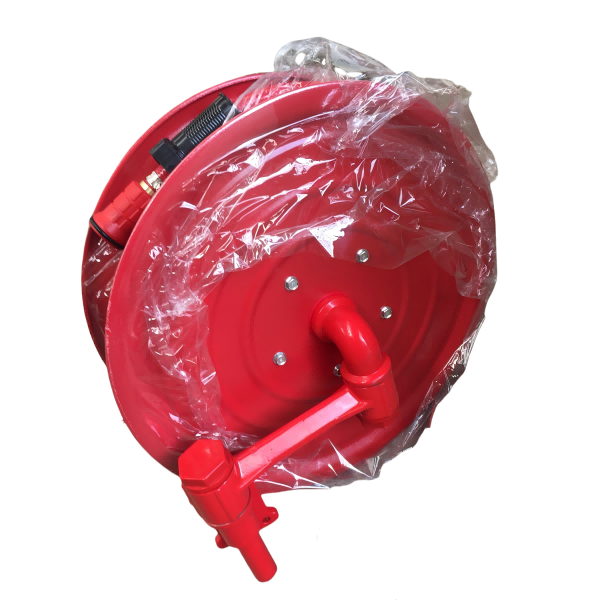

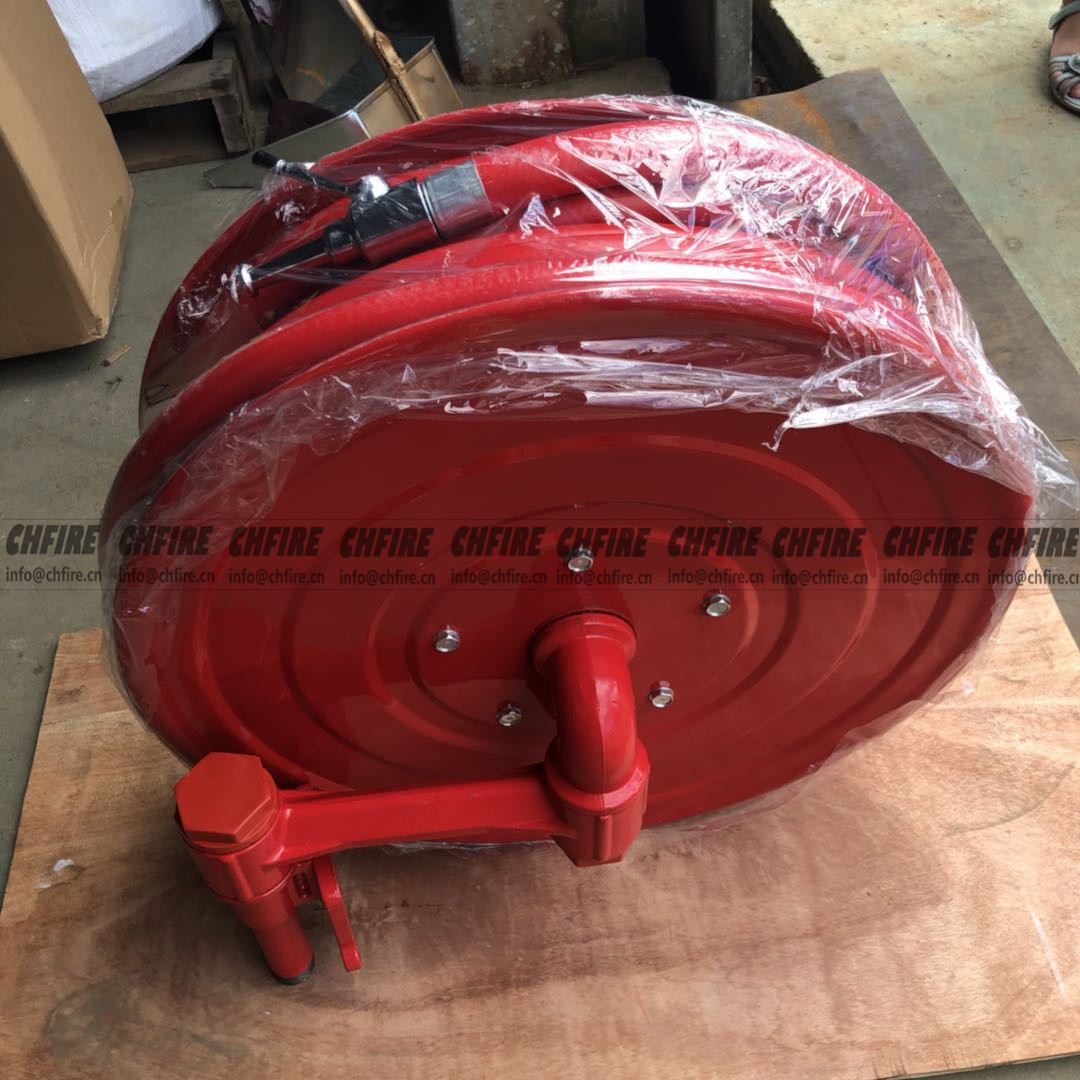

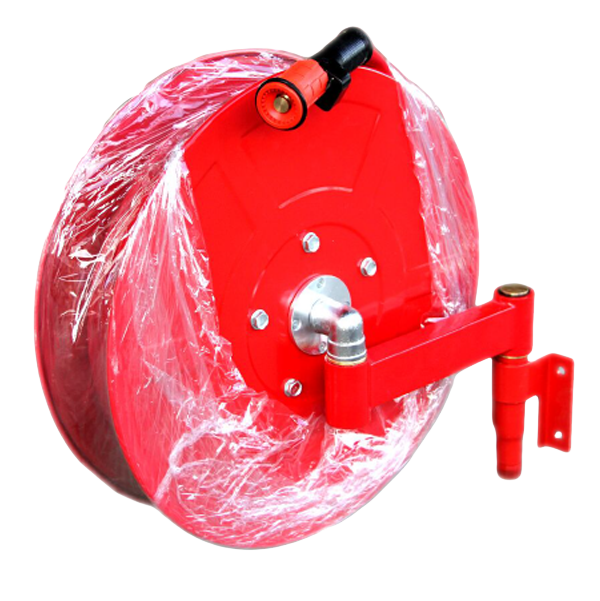

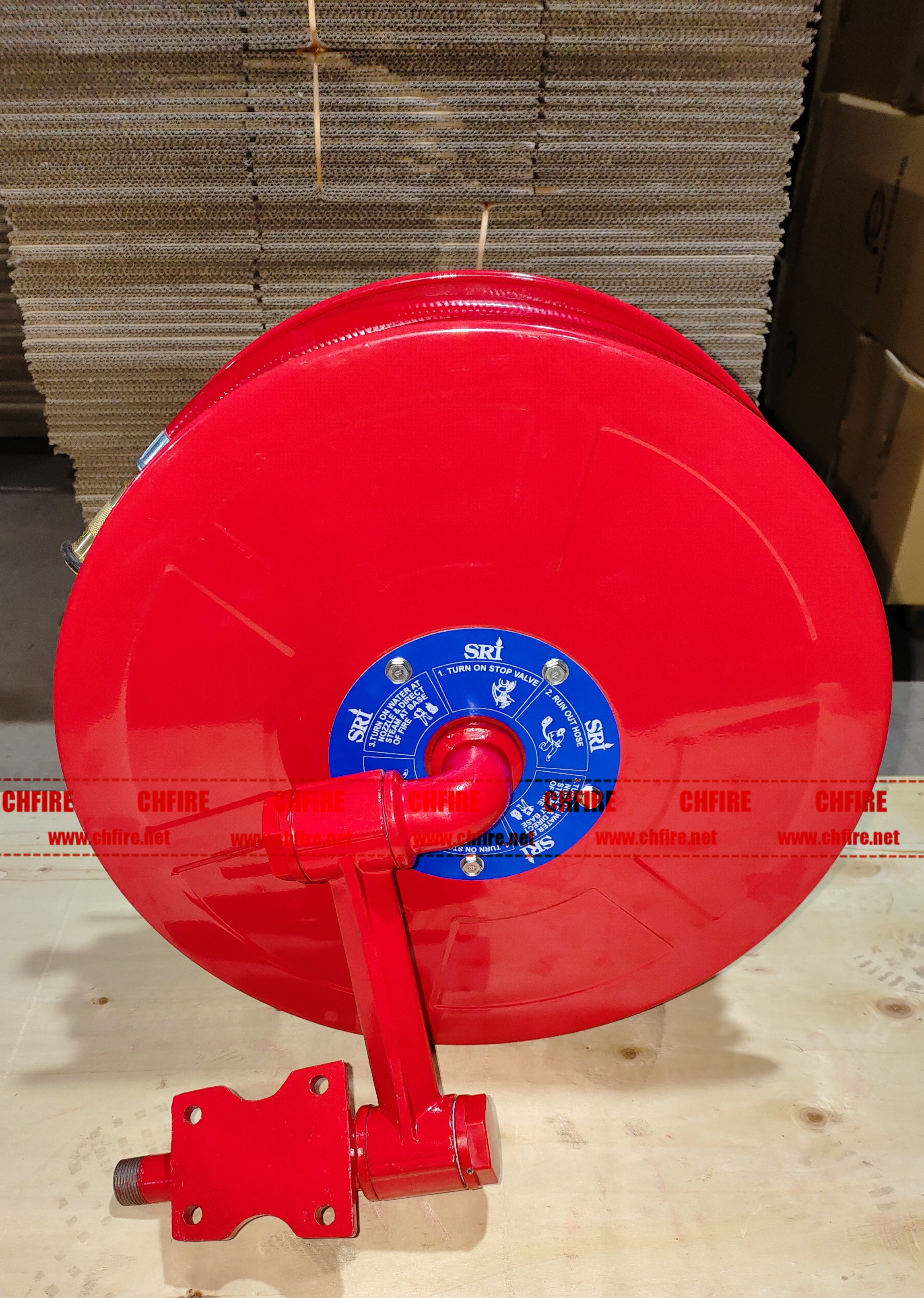

Swinging fire hose reel is widely installed in a building for the occupants to extinguish a small fire. It could swing over 170°. For automatic type, rotation of the reel opens the valve automatically to release water.
| Size | Drum Size | Inlet Connection | Reel Hose Size | Reel Hose Length |
| 3/4"x25 | 550mm | 1"BSP | 3/4Inch (19mm) | 25meters |
| 3/4"x30 | 550mm | 1"BSP | 3/4Inch (19mm) | 30meters |
| 1"x25 | 550mm | 1"BSP | 1Inch (25mm) | 25meters |
| 1"x30 | 550mm | 1"BSP | 1Inch (25mm) | 30meters |
CHFIRE offers NF Fire Hose Reel with high quality and competitive price, which is widely used in fire fighting field.
The water shield hose nozzle for protection is an effective fire nozzle, which is widely used in fire fighting in various places. Its main function is to form a solid water curtain by spraying high-pressure water, so as to isolate the fire source and reduce the fire. At the same time, the spray range of this fire nozzle is wide, can cover a large area, and has a very strong fire protection effect.
High pressure anodized aluminum 1inch, 1 1/2 inch, 2inch, 2 1/2inch NH pistol grip ball shut-off valve is lightweight and durable. Features a cast aluminum bale and durable polymer pistol grip that is easily removed. Pistol grip allows for stable and comfortable use. Valve has polymer ball and seating for reduced friction when opening and closing valve under pressure.May be used with any NH or NST threaded nozzle.
125GPM Pistol Grip Fire Nozzle is designed for use with low pressure mainline hoses providing exceptional performance and long-term value.
The UL-FM water flow indicator is a component of the automatic sprinkler fire extinguishing system, which is generally installed on the water distribution main or the beginning of the water distribution pipe on the system network side. When the blade senses the water flow signal, it will convert the water flow signal into an electrical signal. After receiving the signal, the automatic alarm controller will issue a command pneumatic alarm system or start electrical equipment such as fire pumps, and can display the firearea. This product is suitable for wet, dryand pre-action automatic fire extinguishing systems.
CHFIRE PSKD20 electric fire monitor (#CH22-90)
