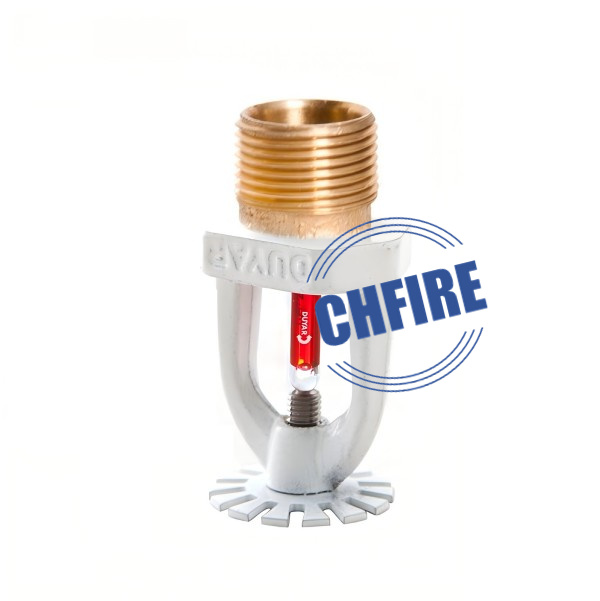

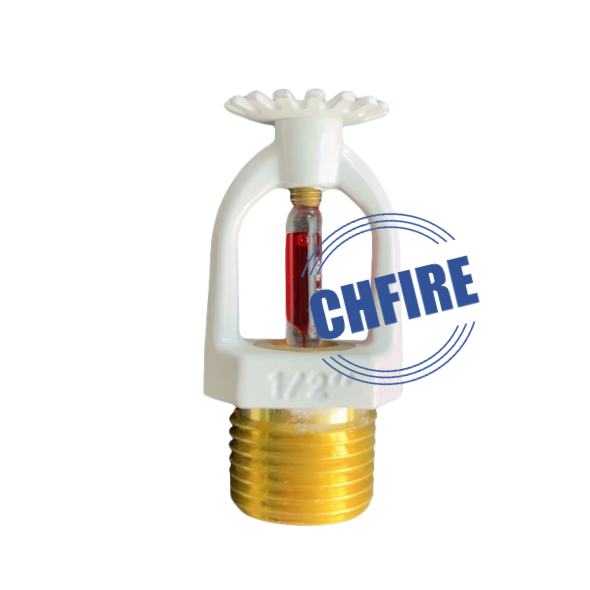

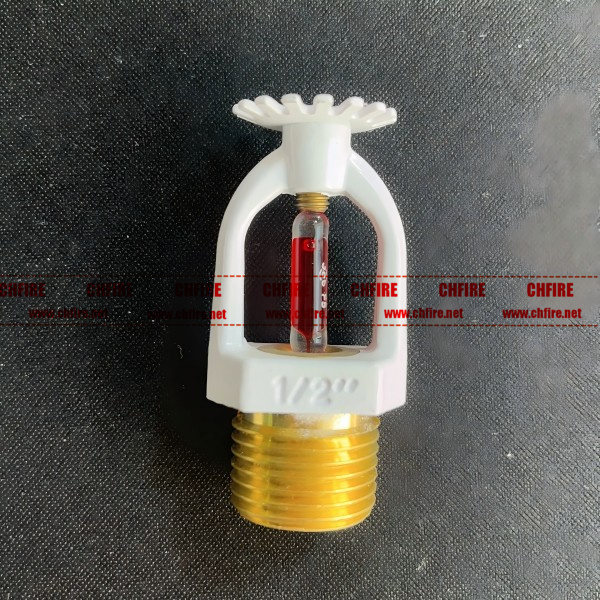

Material: Brass
Color: White or chormed finished
Type: upright or pendent
Glass buld: 3mm or 5mm
Connection Thread: 1/3" or 3/4"
Thread: NPT or BSP
Burst Temperture: 57, 68,79,93,141

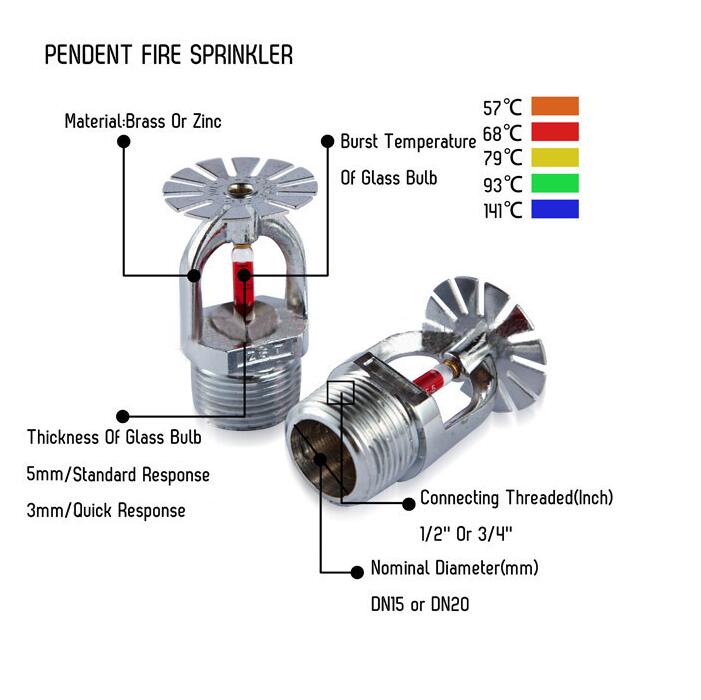

| Fire Sprinkler Head Specification | |
| Material: | Brass |
| Size | 1/2"(DN15) or 3/4"(DN20) |
| Glass bulb | 3mm or 5mm |
| Glass bulb brand | UL listed WS brand |
| Type | Upright or pendent |
| Weight | 45g or 50g |
Fire Hydrant Protection System is designed to fight fire of huge proportions, in all classes of risks and it is an active fire protection measure.
The Quick Attack Foam Tubes are designed to easily and quickly latch on to various CHFIRE® nozzles
The WFD Series water flow detectors are compatible with schedule 10 through 40 steel pipe, sizes 2 through 8 inch, and can be mounted in a vertical or horizontal position.
The saddle type water flow indicator is installed on the sprinkler pipe in a protected area to monitor the flow of water. If a fire occurs and the sprinkler head bursts due to high temperature, the water in the pipeline will flow to the burst sprinkler head, and the flowing hydraulic power will be reduced. Push the water flow indicator to act (also a rubber blade is placed in the pipe), the water flow indicator is used to monitor the water flow, and does not link other equipment.
CHFIRE 950LPM(250GPM) Pistol Grip Fire Nozzle is a Multi Purpose Fire Nozzles. With big flow rate of 950 LPM(250GPM), shall be a good help to extinguisher rapidly.
60LPM Selectable Flow Fire Hose Nozzle is suitable for Wildland Forestry and mining industries, It has 3 flow rates to choose from 60-130-235LPM.
CHFIRE PSKD20 electric fire monitor (#CH22-90)
Place of Origin: Fujian, China Brand Name: CHFIRE Model Number: CH-22-10 foam bladder tank, PHYM Rate of Flow: 32 L/S, 48 L/S, 80 L/S Inlet and Outlet: DN100 - DN250 Mixing Ratio: 3% -6% Foam Tank Material: Carbon Steel Tank Capacity: 500L and more
