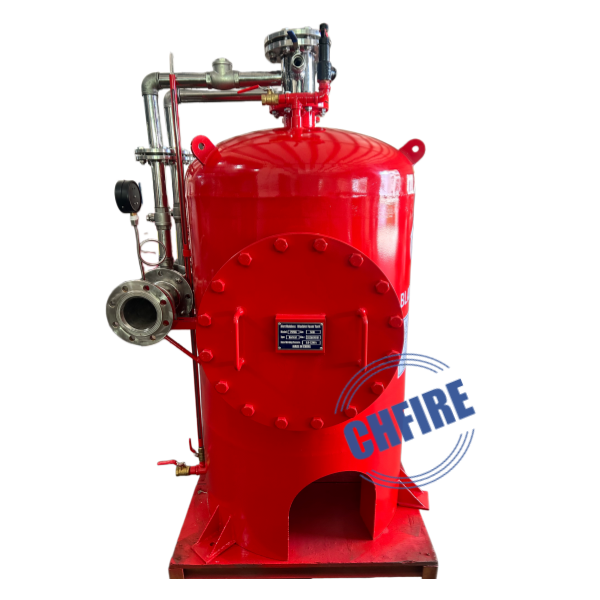

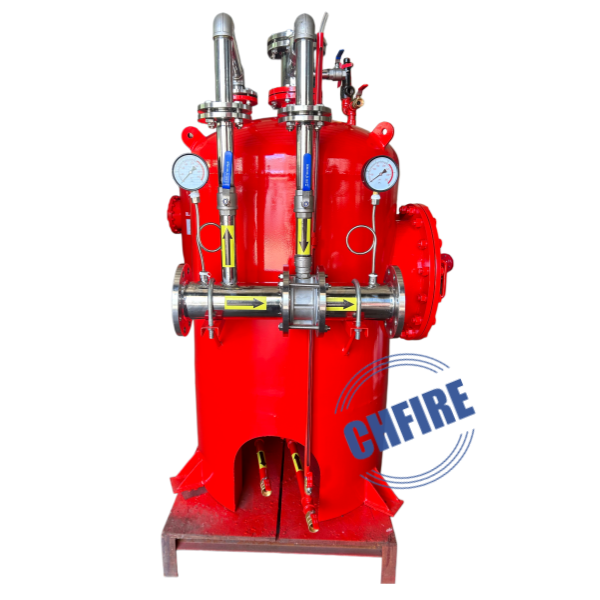

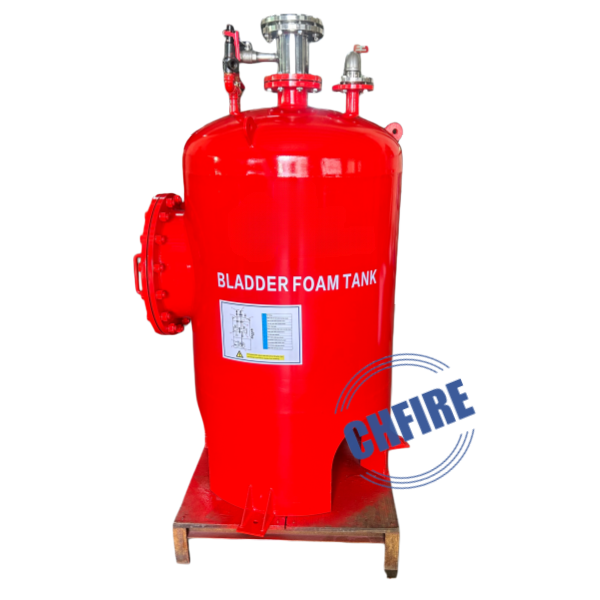

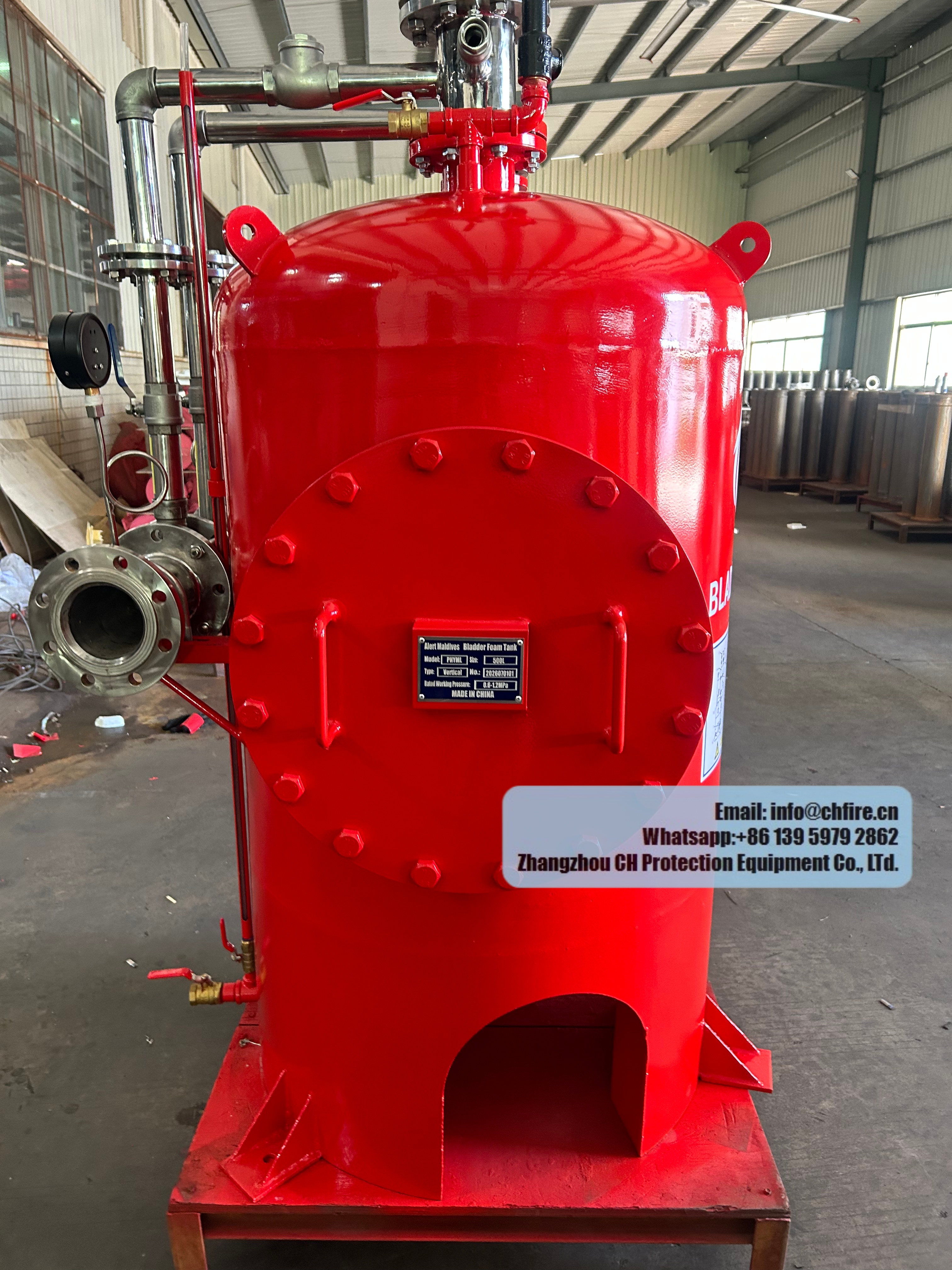

Item Number:CH22-11 Bladder Foam Tank
Tank Orientation: Vertical
Capacity: not less than 3,000 L
Max. Working Pressure : not less than 10 bar
Internal Finishing: Coal Tar Epoxy
External Finishing : Painted Epoxy Flame Red (RAL 3000) , Ladder mounted to exterior
Foam Vessel: Carbon Steel
Foam Bladder: Nylon Reinforced Nitrile Rubber
Foam Proportioner: Carbon Steel with Stainless Steel .
Spool Piece: Carbon Steel
Foam Piping: Stainless Steel
Water Piping: Carbon Steel
Foam Supply Valve: Stainless Steel
Water Charging Valve: Stainless Steel
Bladder Vent / Bladder Drain: Stainless Steel
Vessel Vent / Vessel Drain: Stainless Steel
Thermal Expansion Relief Valve: Copper Alloy / Stainless Steel
Vertical Fire Bladder Foam Tank Specification
| Component | Standard Specification |
| Tank Shell | Carbon Steel Q235B |
| Inner Bladder | EPDM Rubber |
| Working Pressure | Rated Working Pressure 0.6Mpa |
| Test Pressure | Hydraulic Test Pressure: 1.25xrated working pressure |
| Rate Flow | 32LPS,48LPS,64LPS |
| Media | Water, Foam Concentrate 3% or 6% |

Two way breeching inlet is fire service connection equipment, used to connect fire pump truck pipeline with building internal fire pipe network, two outlets design for simultaneous water supply.
Hand-push wheeled construction for convenient relocation and rapid firefighting setup.Ideal for factory, warehouse and commercial premises fire protection.
Our Transparent Fire Extinguisher Box seamlessly integrates robust functionality with sophisticated design. Constructed from ultra-tough polycarbonate, it offers unparalleled clarity and impact resistance, ensuring your safety equipment is always protected yet effortlessly visible.
CHFIRE floor type manual fire hose reel with hand crank is simple to operate, it is widely use in building, hotel, shopping mall.
The stainless steel manual fire monitor is a firefighting device made of stainless steel. It is primarily used for long-range fire suppression and features corrosion resistance and high strength. Made of stainless steel, it offers high strength and corrosion resistance, making it suitable for harsh environments. Manually operated via a worm gear or handle, it allows for horizontal slewing and pitching, with reliable locking.
Stainless steel fire water monitor is a long-distance fire extinguishing equipment with stainless steel as the main material. It has the characteristics of strong corrosion resistance, stable structure and long range. It is widely used in industrial fire fighting, municipal fire fighting and fire fighting in special places.
Balanced Pressure Foam Proportioning System Foam Skids is widely used in fire fighting system because of its versatility and accuracy. It functions by maintaining an equal pressure in the foam concentrate and water inlets to the proportioner. The balancing ability allows the proportioner to be used over a wide range of flows and pressures. The system will also respond quickly and accurately to changes in the water inlet pressures and flow rates. It is a skid mounted fixed units which are capable of providing foam protection to all types of hazards on land, and it is also excellent for various marine applications. Skid mounting allows the complete proportioning system to be assembled on a common base ready for installation into the customera s water supply.
Fire extinguisher plastic stand are mainly used to fix and store fire extinguishers and are commonly found in shops, offices and other places.
Double-door fire fighting cabinets are mainly used to store push-type fire extinguishers, fire hoses, dry powder fire extinguishers and other equipment. Some models support layered storage of different types of fire fighting equipment.
The fire extinguisher cover is made of fire-retardant material, which has triple protection effects of sun protection, waterproof and dustproof, and can delay the aging of the fire extinguisher.
