Flow Rate: 480PM;
Accessories: With Pickup Tube
Water Spray Angle: 180°;
Working Pressure: 7bar;
Max Working Pressure: 16bar
Max Flow Range: 24M
Coupling standard: Storz,NH,NPT,INST,GOST,Machino,etc.

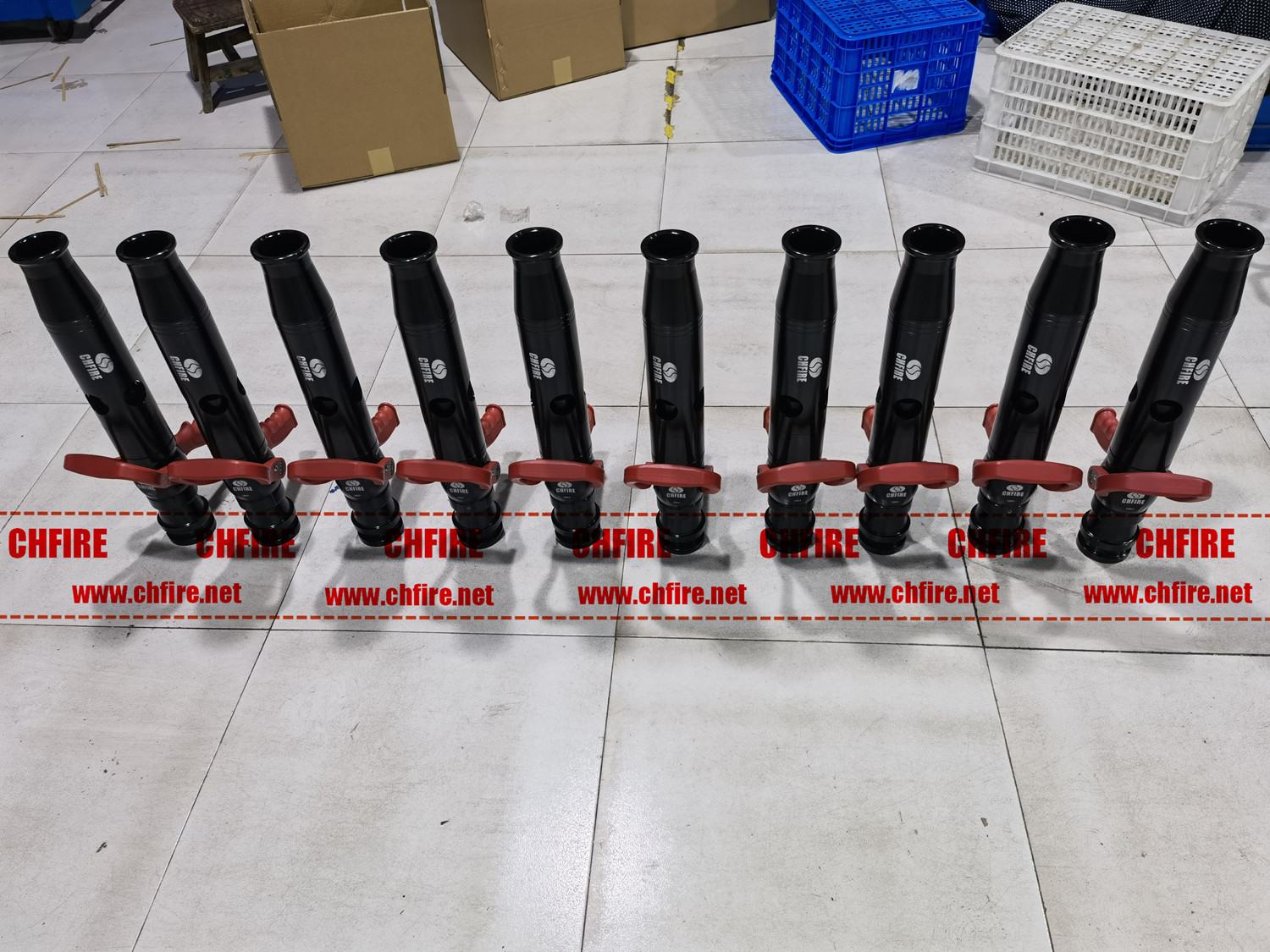

CHFIRE FIREFIGHTING FIRE FOAM NOZZLE FROM CHIAN MANUFACTURER
The foam gun is a portable fire-fighting equipment that can be connected to the fire hose interface with a pipe thread interface. It mixes the fire pressure with the foam liquid and inhales air to produce air foam.
| Model | PQ8 |
| Material of Body | Hard Anodized Aluminum Alloy |
| Material of Ball Valve | ABS(standard), Aluminum Alloy/stainless steel (optional) |
| Material of Valve Handle | ABS(standard), Aluminum Alloy(optional) |
| Material of Pistol Grip | ABS |
| Material of Bumper | Rubber |
| Working Pressure | 7bar |
| Max Working Pressure | 16bar |
| Jetting Range | 24meters @ 7 bar |
| Max Fog Angle | 120° |
| Flow Range | 480LPM |
| Inlet | 2.5", available for Storz,NH,INST,Machino |
CHFIRE FIRE FIGHTING EQUIPMENT
200X pressure reducing valve is a valve used to adjust the water supply direction in a water supply system where fire water and domestic water are connected in parallel. When a fire occurs, the firefighting department urgently needs a large amount of water, and the domestic water supply is immediately cut off to ensure sufficient water for firefighting; when the firefighting stops using water and the pressure decreases, the valve automatically opens and is in a normally open state to restore the domestic water supply. This valve eliminates the need for a separate firefighting water supply network, greatly saving construction costs and water consumption. The valve has high control sensitivity, is safe and reliable, is easy to debug, and has a long service life.
500X pressure relief valve is a device used in water supply pipe network systems and urban water supply projects in high-rise buildings and living areas. The device consists of a main valve, pilot valve, needle valve, ball valve, micro filter and pressure gauge to form a hydraulic control takeover system. It uses hydraulic automatic operation and can be used as a pressure relief valve or a pressure holding valve.
In Line Balanced Pressure Proportioning Systems (ILBP) allow the selection of either foam or water to every discharge device within the foam system.
In firefighting, two way inlet dividing water breeching play a vital role. They are not only a key component in firefighting equipment, but also an important guarantee for firefighters to perform their tasks safely and efficiently. By deeply understanding the functions and usage of water distributors, we can better understand their indispensable role in firefighting.
Swinging fire hose reel is widely installed in a building for the occupants to extinguish a small fire. It could swing over 170°. For automatic type, rotation of the reel opens the valve automatically to release water.
The CHFIRE brand BS750 Fire hydrant is normally used by the fire service, it is made of ductile iron and brass according to BS 750.
NF Fire Hose Reel is a fire hose reel launched by LPCB, which is hot-selling in French and African markets and is welcomed by the firefighting industry for its high quality and easy operation.
The WFD Series water flow detectors are compatible with schedule 10 through 40 steel pipe, sizes 2 through 8 inch, and can be mounted in a vertical or horizontal position.
CHFIRE 950LPM(250GPM) Pistol Grip Fire Nozzle is a Multi Purpose Fire Nozzles. With big flow rate of 950 LPM(250GPM), shall be a good help to extinguisher rapidly.
235 LPM Selectable Flow Fire Hose Nozzle is suitable for Wildland Forestry and mining industries, It has 3 flow rates to choose from 60-130-235LPM.
Place of Origin: Fujian, China Brand Name: CHFIRE Model Number: CH66-31 fire hose cabinet fire extinguisher cabinet Material: stainless steel, mild Steel Thickness: 1.0mm or 1.2mm Cabinet door: metal door or glass door Finishing: stainless steel brush plating/mirror
